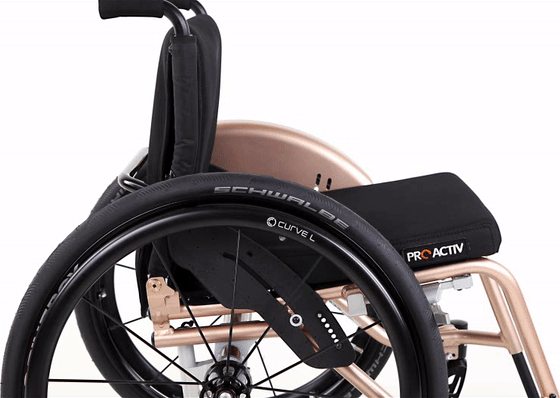

Attaching the clothing guard
Attaching the clothing guard
Attaching the clothing guard
Attaching the clothing guard
Caster wheel and caster wheel forks
Caster wheel and caster wheel forks
Caster wheel bearing block
Caster wheel bearing block
Pack size
Pack size
Drive wheel axle, seat height and tipping point adjustment options
Drive wheel axle, seat height and tipping point adjustment options
Adaptable back with back padding; can be folded and adjusted at seven different angles
Adaptable back with back padding; can be folded and adjusted at seven different angles
Adaptable back with back padding, folded down
Adaptable back with back padding, folded down
Back cross bar
Back cross bar
Adaptable back (belt system), without back padding (from the front)
Adaptable back (belt system), without back padding (from the front)
Adaptable back (belt system), without back padding (from the rear)
Adaptable back (belt system), without back padding (from the rear)
Cord to adjust the angle of the backrest
Cord to adjust the angle of the backrest
Body contour seat cover, pliable, breathable and durable
Body contour seat cover, pliable, breathable and durable
Slight frame retraction
Slight frame retraction
Side part and aluminium clothing guard removable via lock function
Side part and aluminium clothing guard removable via lock function
Integral parking brake swivels under the frame in opened position
Integral parking brake swivels under the frame in opened position
Footrest with rubber-coated footplate support
Footrest with rubber-coated footplate support
Footrest folds up to the rear with spring locking mechanism
SPEEDY 4you Ergo with adaptable back (belt system) and integral parking brake as well as slight frame retraction
SPEEDY 4you Ergo with adaptable back (belt system) and integral parking brake as well as slight frame retraction
SPEEDY 4you Ergo with adaptable back (belt system) and integral parking brake as well as slight frame retraction
SPEEDY 4you Ergo with adaptable back (belt system) and integral parking brake as well as slight frame retraction
SPEEDY 4you Ergo with adaptable back (belt system) and integral parking brake as well as stronger frame retraction
SPEEDY 4you Ergo with adaptable back (belt system) and integral parking brake as well as stronger frame retraction
SPEEDY 4you Ergo with adaptable back (belt system) and integral parking brake as well as stronger frame retraction
SPEEDY 4you Ergo with adaptable back (belt system) and integral parking brake as well as stronger frame retraction
SPEEDY 4you Ergo with adaptable back (belt system) and integral parking brake as well as stronger frame retraction
SPEEDY 4you Ergo with adaptable back (belt system) and integral parking brake as well as stronger frame retraction
SPEEDY 4you Ergo with adaptable back (belt system) and integral parking brake as well as stronger frame retraction
SPEEDY 4you Ergo with adaptable back (belt system) and integral parking brake as well as stronger frame retraction
SPEEDY 4you Ergo with adaptable back (belt system) and integral parking brake as well as stronger frame retraction
SPEEDY 4you Ergo with adaptable back (belt system) and integral parking brake as well as stronger frame retraction
SPEEDY 4you Ergo with adaptable back (belt system) and integral parking brake as well as stronger frame retraction
SPEEDY 4you Ergo with adaptable back (belt system) and integral parking brake as well as stronger frame retraction
SPEEDY 4you Ergo with adaptable back (belt system) and integral parking brake as well as stronger frame retraction
SPEEDY 4you Ergo with adaptable back (belt system) and integral parking brake as well as stronger frame retraction
SPEEDY 4you Ergo with adaptable back (belt system) and integral parking brake as well as stronger frame retraction
SPEEDY 4you Ergo with adaptable back (belt system) and integral parking brake as well as stronger frame retraction
SPEEDY 4you Ergo with adaptable back (belt system) and integral parking brake as well as stronger frame retraction
SPEEDY 4you Ergo with adaptable back (belt system) and integral parking brake as well as stronger frame retraction
Adaptable back with back padding and back tube with integrated handles
Adaptable back with back padding and back tube with integrated handles
Adjusting and folding the backrest (back shell)
Back tube with integrated handles
Back tube with integrated handles
Safety push handles with continuous height adjustment
Stronger frame retraction
Stronger frame retraction
Removing and attaching the wheelbase extension
Transferring the wheel to the wheelbase extension
Presentation of one-hand drive by behindert-barrierefrei e.V.
One-hand drive with double handrim
Knee lever brake control for one-hand operation
SPEEDY 4you Ergo with adaptable back (belt system) and integral parking brake as well as stronger frame retraction
SPEEDY 4you Ergo with adaptable back (belt system) and integral parking brake as well as stronger frame retraction
SPEEDY 4you Ergo with adaptable back (belt system) and integral parking brake as well as stronger frame retraction
SPEEDY 4you Ergo with adaptable back (belt system) and integral parking brake as well as stronger frame retraction
SPEEDY 4you Ergo with adaptable back (belt system) and integral parking brake as well as stronger frame retraction
SPEEDY 4you Ergo with adaptable back (belt system) and integral parking brake as well as stronger frame retraction
SPEEDY 4you Ergo with adaptable back (belt system) and integral parking brake as well as stronger frame retraction
SPEEDY 4you Ergo with adaptable back (belt system) and integral parking brake as well as stronger frame retraction

SPEEDY 4you Ergo

  • The SPEEDY 4you Ergo active rigid frame wheelchair impresses with its unique frame with fine geometry. The seat fold results in a stable seat position with a “Tuber stop”.

    9 frame and 4 chassis parameters can be freely configured, including knee angle, frame retraction, wheelbase and lower leg width at the top and bottom. Each frame is unique and individually made for its user.

    Thanks to the integrated tipping point and seat height adjustment in 1 cm steps, the SPEEDY 4you Ergo can be flexibly adapted to suit the user's changing needs if required.

    The greater stability of the frame means that there is nothing to stop you from adding an adaptive bike, traction device or other adapters.

    Are you looking for a wheelchair with exactly these features, but you do not need individual leg guidance through frame retraction, defined lower leg widths and special knee angles, rather you would like a frame stem in G- or V-shape? Then SPEEDY 4all Ergo is the right wheelchair for you.  Details >

Physiologically optimised seating and special individual frame design options

The ergonomic seat fold gives a stable and comfortable seat position.

Moreover, the frame is perfectly tailored to the user with the choice of 9 frame parameters. The frame stem can include a frame retraction. A frame retraction means that the upper frame tubes taper towards the front when looking at the frame from above (from a bird’s eye perspective). This enables the user to keep their thighs closer together and also looks better. The lower leg guide can be individually defined with the ‘upper and lower front frame width’ frame dimensions.

The knee angle can be individually selected.

Option: Integral parking brake

The new, attractive integral parking brake is convenient to use. When the brake is off, it is swivelled completely underneath the frame so that more space is created for finger and hand movement. The brake is installed so that it is barely visible under the frame, highlighting the wheelchair’s slender design.

Option: One-hand drive

For users with hemiplegia or other restrictions affecting one side of their body, a manoeuvrable one-hand drive with a double-handrim can be installed up to a camber of 2°. Different handrim materials, external diameters and distances to the rim meet a wide range of requirements. The drive wheels can be removed using a floating axle for simple handling.

The one-hand drive can be combined with the 'One-handed knee lever brake'. When the brake is activated on one side, a Bowden cable moves the brake pins on both sides.

Sturdy frame for maximum mobility and compatibility

The frame is rated for loads of up to 120 kg.

Adapters let you connect traction devices and adaptive bikes in just a few steps, while the sturdy frame ensures optimal handling of the combination. The optional removable wheelbase extension offers even better traction when it is needed. This wheelbase extension adds very little weight to the wheelchair and is easy to attach to the wheelchair without any tools as required.

Compatibility with wheelchair drives like e-fix, e-motion or Twion, for example, can also be provided upon request.

The SPEEDY 4you Ergo is crash-tested. Transport restraint systems for wheelchairs in motor vehicles are available as optional extras, as are crash-tested headrests.

Simple transport

Thanks to the minimal frame geometry, the easy-to-fold backrest and the ability to remove assemblies without tools, the SPEEDY 4you Ergo wheelchairs are ideal for independent loading.

Various back systems

The backrest can be folded and adjusted at seven different angles (without tools), offering flexible seat positions. It is particularly helpful when using adaptive bikes and traction devices, as the ability to adjust the backrest angle forward (perpendicular to the ground) is very useful to compensate for the raised caster wheels. This backrest is available as a lightweight adaptable back with back padding (belt system for optimal adjustment of slack and padded lumbar support) or as a sturdy back shell (very sturdy with fixed slack and adjustable lumbar support).

The ERGO Back backrest bar is also available as an option in addition to the adjustable back and the back shell. This backrest bar relieves the strain on your back by allowing you to lean back, and adds an attractive visual touch. The recessed gripping areas mean that you do not need any push handles, and also prevent unwelcome pushing by others.

Range of seat systems

Various seat systems are available for the SPEEDY 4you Ergo. The ‘open belt system’ seat cover lets users adjust the pressure distribution using belts. The ‘body contour’ seat cover provides a cushioning effect, absorbing impacts and helping prevent pressure ulcers. It is highly breathable and sturdy (the material is double-stitched to counteract the ‘hammock’ effect). You can also select seat plates as a sturdy seat system with no slack.

Wide range of optional extras and accessories

Each SPEEDY 4you Ergo is a customised model, with frame dimensions and equipment that are always tailored to the wheelchair user’s needs. You can choose from a wide range of equipment for the SPEEDY 4you Ergo, including footrests, brakes, push handles, back and seat systems, clothing guards, armrests, as well as drive and caster wheels.

Device register item number: -
Special features: Adjustment options | Seat fold | Custom frame, frame retraction can be selected
Number of configurable frame and chassis parameters: 13
Seat fold: Seat fold integrated
Leg guidance at thigh level: Frame retraction available
Lower leg guidance: Frame stem defined via front frame width top and bottom
Front frame angle: Individual, starting at 90°
Abduction: -
Lift function / seat height adjustment: -
Seat width: 30 - 52 cm (in 1 cm steps)
Seat depth: 36 - 54 cm (in 1 cm steps)
Back height: 20 - 48 cm (in 1 cm steps)
Lower leg length: 37 - 50 cm (in 1 cm steps)
Rear seat height: 39 - 47 cm (in 1 cm steps)
Front seat height: 42 - 54 cm (in 1 cm steps)
Tipping point: 3 - 11 cm (in 1 cm steps)
Adjustment of tipping point: In 1 cm steps
Adjustment of seat height/seat angle: Seat angle adjustable via wheel plates, caster forks and caster wheel
Total product weight: Starting at 9.7 kg
Max. standard load weight: Up to 120 kg
Max. load weight for Heavy Duty: -
Possible drive wheel sizes: 24'', 25'', 26''
Possible drive wheel camber: 1°, 4°, 6°
Wheelbase extension: Removable wheelbase extension
One-hand drive: Optional, with 2°-wheel camber
Integral parking brake: Optional
Wheelchair drive attachment: Optional, e-fix, Twion, e-motion, other drives on request
Approval for passenger transport in motor vehicles / crash-tested: Approved
Transport restraint system: Optional
Changes excepted. Details see order form. Individual dimensions on request.
