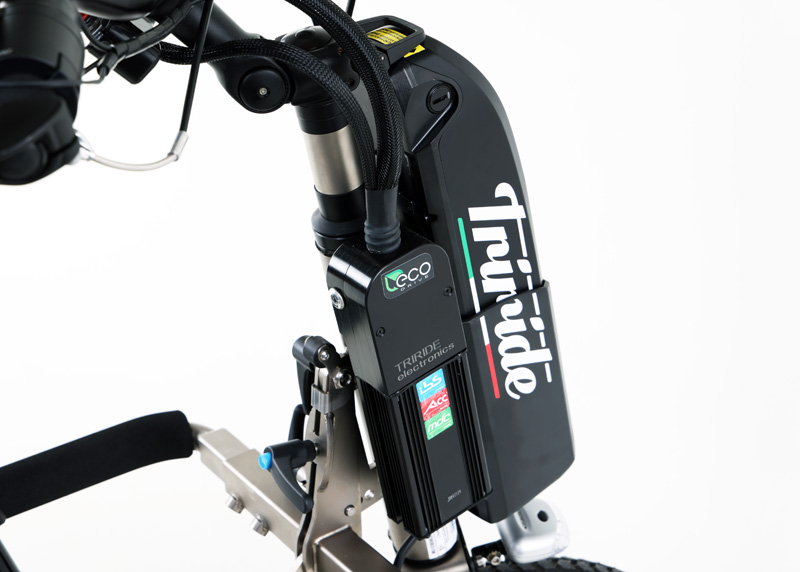

Triride SPECIAL COMPACT HT with SPEEDY 4all Ergo, adaptation
Triride SPECIAL COMPACT HT with SPEEDY 4all Ergo, adaptation
Triride SPECIAL COMPACT HT with SPEEDY 4all Ergo, adaptation
Triride SPECIAL COMPACT HT with SPEEDY 4all Ergo, adaptation

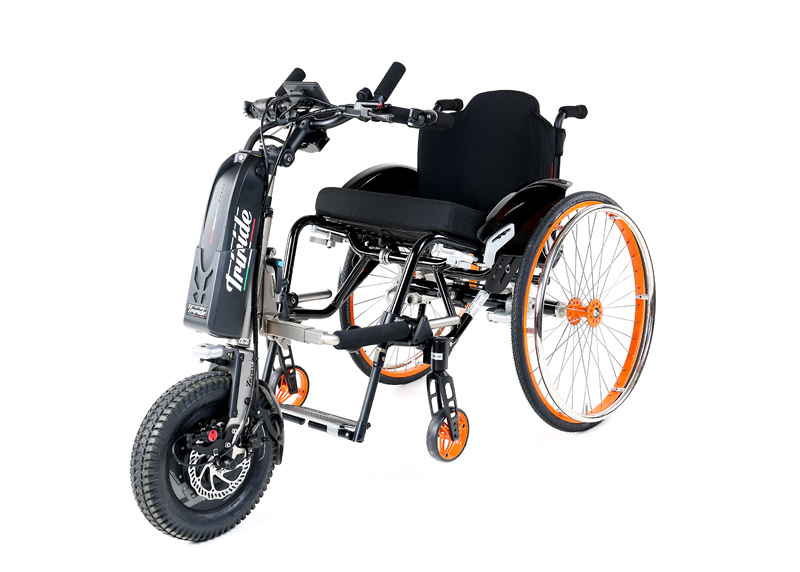

Triride SPECIAL COMPACT HT with SPEEDY 4all Ergo
Triride SPECIAL COMPACT HT with SPEEDY 4all Ergo
Triride SPECIAL COMPACT HT with SPEEDY 4all Ergo
Triride SPECIAL COMPACT HT with SPEEDY 4all Ergo
Triride SPECIAL COMPACT HT with SPEEDY 4all Ergo
Triride SPECIAL COMPACT HT with SPEEDY 4all Ergo
Triride SPECIAL COMPACT HT with SPEEDY 4all Ergo
Triride SPECIAL COMPACT HT with SPEEDY 4all Ergo
Triride SPECIAL COMPACT HT with SPEEDY 4all Ergo
Triride SPECIAL COMPACT HT with SPEEDY 4all Ergo
Triride SPECIAL COMPACT HT with SPEEDY 4all Ergo, wheel in wheelbase extension
Triride SPECIAL COMPACT HT with SPEEDY 4all Ergo, wheel in wheelbase extension
Triride SPECIAL COMPACT HT with SPEEDY 4all Ergo, wheel in wheelbase extension
Triride SPECIAL COMPACT HT with SPEEDY 4all Ergo, wheel in wheelbase extension
Triride SPECIAL COMPACT HT with SPEEDY 4all Ergo, wheel in wheelbase extension
Triride SPECIAL COMPACT HT with SPEEDY 4all Ergo, wheel in wheelbase extension
Triride SPECIAL COMPACT HT with SPEEDY 4all Ergo, wheel in wheelbase extension
Triride SPECIAL COMPACT HT with SPEEDY 4all Ergo, wheel in wheelbase extension
Video: Triride adaptation with PRO ACTIV central adapter
Video: Disconnecting the Triride traction device with PRO ACTIV central adapter

Traction devices from Triride

  • As both a reliable importer and sales partner of the original Triride traction devices for Germany and Austria, PRO ACTIV offers you five models from the Triride range, as well as comprehensive knowledge of the Triride products. The Triride electric traction devices are characterised by their intuitive operation and powerful drives. Even with limited hand function, the Triride traction devices can be easily connected to the wheelchair. Thanks to their compact design, Triride wheelchairs are very manoeuvrable.

    The 5 different speed settings allow you to set the speed according to your needs. With cruise control, the speed does not constantly need to be regulated by accelerating or braking. This feature allows you to comfortably maintain a certain speed while strolling with another person. Reverse gear makes manoeuvring easier.

    Triride traction devices are above all suitable for outdoor use, but due to their compact design, small wheel sizes of 10", 12" or 14" and a steering radius of up to 180°, they can also be used indoors.

    The EcoDrive system, which offers a choice of 5 driving modes, is available for the Triride tractors. The modes 1 | 2 | 3 allow great energy savings and an even quieter and more relaxed ride. The modes 4 | 5 enable the Triride to face the most demanding situations, such as mountain trails or steep climbs.

KIDS model

Thanks to its smaller frame and the 12" wheel, the KIDS model is handy and compact, making it perfect for children. Given its light weight starting from 7.5 kg, the Triride KIDS is easy to transport and easy for kids to handle. With a range of up to 30 km, a family trip is no problem. The restricted motor power ensures safe and child-friendly operation.

  • Motor power: 540 W
  • Rechargeable battery: 36 V, 252 Wh with a range of up to 30 km
  • Wheel sizes: 12"
  • Tyre profiles: City, optional Cross
  • Weight: starting from 7.5 kg
  • Stainless steel frame
  • Disk brake
  • LCD display
  • 5 speeds, reverse gear, basic cruise control
  • Performance KIT with IBS and ACC as standard, MDC and ECODRIVE optional

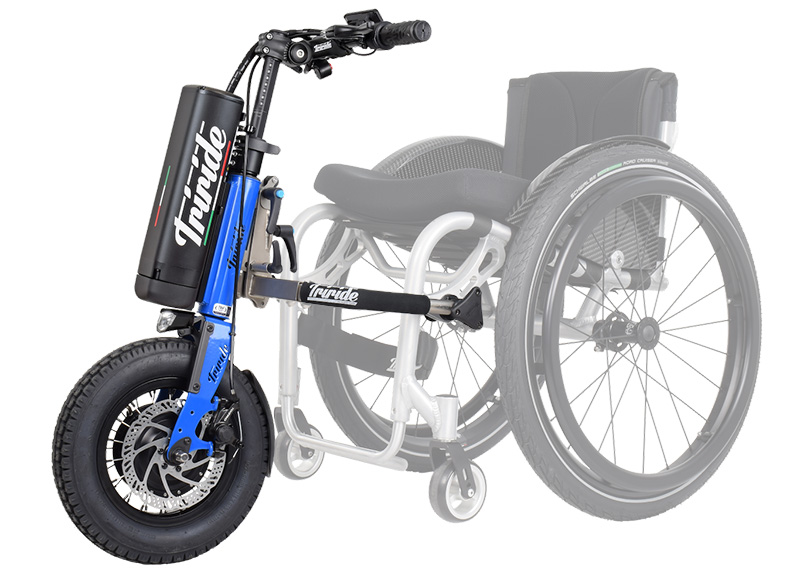

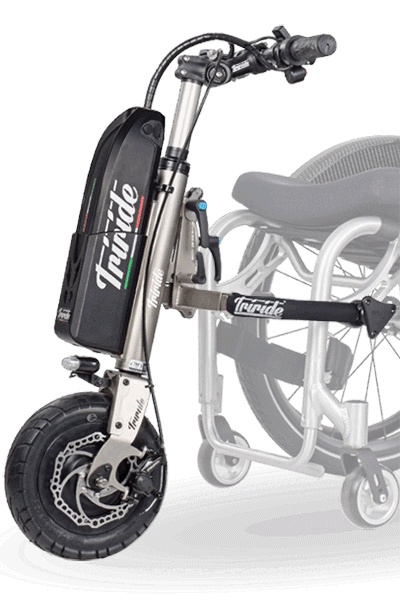

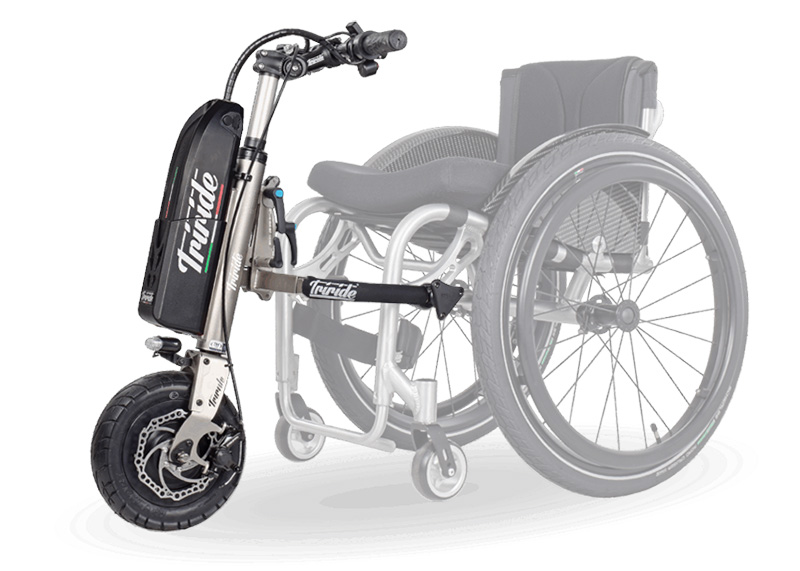

LIGHT model

The LIGHT model is the entry-level adult model in the Triride range. Thanks to its 252 Wh rechargeable battery, some airlines will also allow you to take it on board without any problems. Other batteries with higher capacities are available. With a motor output of 670 W, it is also ideally suited for easier outdoor paths. With a weight starting at 8.5 kg, the Triride LIGHT model is very easy to handle and can be perfectly adapted to your needs with a choice of 10", 12" and 14" wheels and different tyres.

  • Motor power: 670 W with 36 V rechargeable batteries; 890 W with 48 V rechargeable batteries
  • Rechargeable battery: 36 V, standard 252 Wh or 324 Wh with a range up to 30 km and 40 km respectively;
    optional 48 V, 297 Wh or 504 Wh with a range up to 35 km and 50 km
  • Wheel sizes: 10", 12", 14"
  • Tyre profiles: City or Cross
  • Weight: starting from 8.5 kg
  • Stainless steel frame
  • Disk brake
  • LCD display
  • 5 speeds, reverse gear, basic cruise control
  • Performance KIT as well as IBS, ACC, ECODRIVE and brake button available individually as options, MDC optional

PIEGHEVOLE/ FOLDABLE model

This model is characterised by its folding design: thanks to its folding handle and removable coupling, it fits into a travel trolley. The Triride PIEGHEVOLE/ FOLDABLE is therefore ideal for travelling by plane and for transporting in the car. Thanks to the battery capacity of 252 Wh, some airlines will also allow you to take it on board without any problems. Given its low weight starting from 8.2 kg and the compact design, this model is light and small for optimal handling. A range of up to 30 km with an motor output of 670 W is possible.

  • Motor power: 670 W
  • Rechargeable battery: 36 V, 252 Wh with a range of up to 30 km
  • Wheel sizes: 12"
  • Tyre profiles: City, optional Cross
  • Weight: starting from 8.2 kg
  • Stainless steel frame
  • Disk brake
  • LCD display
  • 5 speeds, reverse gear, basic cruise control
  • Performance KIT as well as IBS, ACC, ECODRIVE and brake button available individually as options, MDC optional

SPECIAL COMPACT HT model

This model is the perfect all-rounder for the demanding user, with a range of up to 50 km. Thanks to its strong propulsion with up to 1400 Watts of motor power, high torque and wide tyres with a 12" wheel, a comfortable driving experience is guaranteed on any surface. The combination of torque and a weight of 11 kg is unique.

  • Motor power: 1000 W with 36 V rechargeable batteries; 1400 W with 48 V rechargeable batteries
  • Rechargeable battery: Standard 36 V, 324 Wh with a range of up to 40 km;
    optional 48 V, 297 Wh or 504 Wh with a range of up to 35 and 50 km respectively
  • Wheel sizes: 12"
  • Tyre profiles: City, optional Cross; for the Allroad equipment variant: All Road tyres
  • Weight: starting from 11 kg
  • Stainless steel frame
  • Disk brake
  • LCD display
  • 5 speeds, reverse gear, basic cruise control
  • Performance KIT as well as IBS, ACC, ECODRIVE and brake button available individually as options, MDC optional

SPECIAL L14 model

This powerful package has the strongest motor power in the model series, up to 1500 W. For this reason, the SPECIAL L14 is also suitable for people with higher body weights and for driving on demanding terrain. With a range of up to 50 km, even longer tours are possible.

  • Motor power: 1500 W with 48 V rechargeable batteries
  • Rechargeable battery: Standard 48 V, 297 Wh with a range of up to 35 km;
    optional 48 V, 504 Wh with a range of up to 50 km
  • Wheel sizes: 14"
  • Tyre profiles: City long life
  • Weight: starting from 11.9 kg
  • Stainless steel frame
  • Disk brake
  • LCD display
  • 5 speeds, reverse gear, basic cruise control
  • Performance KIT as well as IBS, ACC, ECODRIVE and brake button available individually as options

Electronic aid: IBS (Intelligent Braking System)

Thanks to the IBS, the motor brake is usually sufficient to stop your Triride safely. For this reason, you only need to use the disk brake in an emergency, or to prevent rolling away on a slope, for example. This protects the disk brake and significantly reduces wear on the brake pads. On demanding and long trips, the continuous use of the disk brake can lead to overheating of the brake and brake pads. This is prevented by IBS.

Furthermore, the IBS almost completely prevents the front wheel from locking when braking. Even on smooth and slippery surfaces, the traction device always comes to a safe stop.

By using the IBS system, the battery is charged with each braking operation, increasing the maximum range.

Information sheet >> Video IBS function >> Video IBS brake button >>

Electronic aid: ACC - Adaptive Cruise Control

Thanks to its automatic speed control, ACC adaptive cruise control facilitates the handling of the Triride traction devices, especially over long distances, when driving downhill and for people with limited hand mobility. The desired speed is automatically maintained even when travelling downhill. Pressing a button is enough to activate the Triride ACC intelligent cruise control. ACC can be switched on or off at any time while driving at a speed of 2 km/h or above, so that even less experienced users can conveniently use the system for their individual ride comfort. The intelligent speed control is deactivated immediately, and fully automatically, when you manually brake or accelerate your Triride, ensuring 100% safety. The Adaptive Cruise Control optimises energy consumption in any situation and gradually adjusts motor power to keep the speed constant.

  • UPHILL:
    The adaptive cruise control maintains the desired speed by automatically increasing the torque on slopes.
  • LEVEL SURFACES:
    On flat terrain, the cruise control maintains the desired speed and reduces battery consumption.
  • DOWNHILL:
    The Adaptive Cruise Control maintains the desired speed by activating the motor brake. The battery is also charged.

Information sheet >> Video >>

Electronic aid: MDC (Motion Direct Control) - driving comfort system

MDC provides maximum safety, both uphill and downhill:

  • GAS & BRAKE LEVERS IN ONE:
    accelerate and brake with just one control unit.
  • STOPPING ON A SLOPE:
    hill braking and hill start assistant for safe stopping and starting on a slope.
  • DOWNHILL:
    braking downhill via the motor brake including recuperation of power for increased range.

The new MDC driving comfort system enables the Triride to be controlled by simply dosing the throttle lever. The speed and torque control follows the drive signal transmitter (accelerator) - even when braking to a standstill.

Information sheet >> Video >>

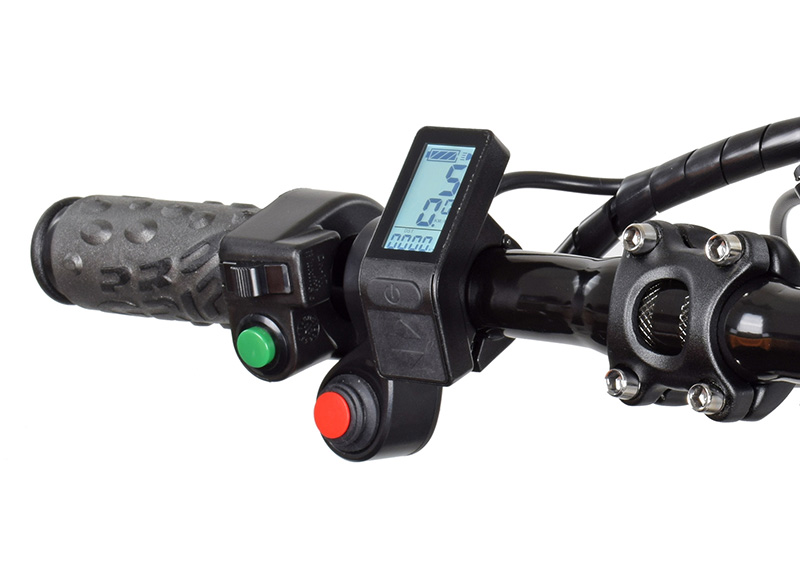

Control options for those with tetraplegia & a comprehensive selection of optional extras and accessories

Triride offers extensive options for configuring the control elements for those with tetraplegia, with options such as various hand supports, accelerators and brake levers, and much more. The following video shows two different configurations
(on the order sheet, configuration numbers 01 and 07).

Video >>

Depending on your personal needs, you can choose from a wide range of accessories: Bags. Baskets, rear-view mirrors, lights, leg covers, double-battery holders and more. Various LCD displays are also possible.

Video LCD colour USB display >>

Wide range of adapters, supported coupling & various parking stands

You can use the original Triride adapter system. The support arms and clamps of the Triride adapter system can be adapted to a wide variety of wheelchair models. Alternatively, Triride also offers a central adapter.

The Triride traction device can also be connected to the wheelchair with a PRO ACTIV front or central adapter. The special thing about it: If the customer already has a PRO ACTIV adapter, then in the majority of cases, only the adapter attachment package needs to be ordered. In conjunction with the PRO ACTIV adapter, the PRO ACTIV parking stand with spring-loaded manoeuvring rollers is optionally available.

Assisted coupling is possible in conjunction with the cruise control. To do so, press and hold the cruise control button and operate the accelerator. The traction device will now move toward you for easy coupling.

Depending on the adapter selected, you can choose a parking stand from Triride or PRO ACTIV.

Drive type: Via drive system (traction device only)
Special features: Purely a traction device with powerful drive system and small drive wheel
Total weight without adapter: Starting at 7.5 kg (KIDS) |
Starting at 8.5 kg (LIGHT) |
Starting at 8.2 kg (PIEGHEVOLE) |
Starting at 11 kg (SPECIAL COMPACT HT) |
Starting at 11.9 kg (SPECIAL L14)
All weight specifications without battery
Triride adapter weight: 2.0 kg
Central adapter weight: Starting at 2.9 kg for rigid-frame wheelchairs; starting at 3.7 kg for folding frame wheelchairs
Front adapter weight: Starting at 3.7 kg
Max. standard load weight: Up to 120 kg towing capacity (KIDS, BASE, PIEGHEVOLE) | Up to 160 kg towing capacity (SPECIAL COMPACT HT, SPECIAL L14)
Max. load weight for Heavy Duty: The SPECIAL COMPACT HT & SPECIAL L14 models are already approved as standard for up to 160 kg of towing weight. With a reinforced adapter, these two models can also be approved up to 180 kg upon request.
Pack size: BASE: 95 x 46 x 42 cm | KIDS: 80 x 46 x 42 cm | PIEGHEVOLE: 90 x 40 x 32 cm, folded: 65 x 40 x 24 cm |
SPECIAL COMPACT HT: 95 x 46 x 40 cm | SPECIAL L14: 95 x 46 x 42 cm
Possible drive wheel sizes: 10", 12", 14"
Grip widths: -
Crank lengths: -
Gear systems: -
Brakes: Disk brakes
Motors: Hub engines:
Triride HT | 540 W (KIDS)
Triride HT | 670 W (LIGHT at 36 V, PIEGHEVOLE)
Triride HT | 890 W (LIGHT at 48 V)
Triride HT | 1000 W (SPECIAL COMPACT HT at 36 V)
Triride HT | 1400 W (SPECIAL COMPACT HT at 48 V)
Triride | 1500 W (SPECIAL L14)
Pushing aid/Starting aid: -
Rechargeable batteries: Triride LiMn 36 V | 7 Ah | 252 Wh | Range up to 30 km
Triride LiMn 36V | 9 Ah | 324 Wh | Range up to 40 km
Triride LiMn 48V | 6,2 Ah | 297 Wh | Range up to 35 km
Triride LiMn 48V | 10,5 Ah | 504 Wh | Range up to 50 km
Double rechargeable battery: Possible; swap via change-over switch on double battery holder
Recuperation: 1 recuperation level
With IBS, ACC and MDC, automatic activation of the downhill recuperation when braking or when the adaptive cruise control is activated
Drive system speed: 6 km/h (Switzerland: 10 km/h), 15 km/h (individual permit required in Germany for operation in public areas and road traffic)
Changes excepted. Details see order form. Individual dimensions on request.
