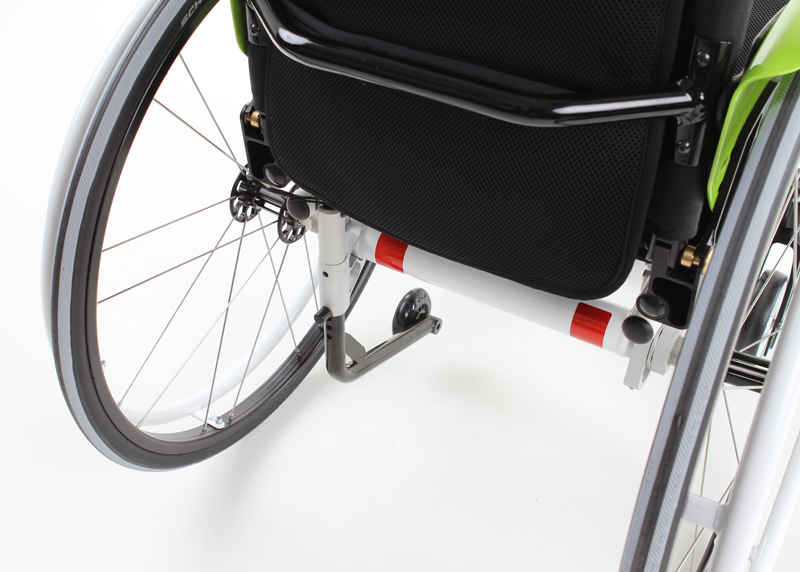

Anti-tipping support (passive position)
Anti-tipping support (passive position)
Anti-tipping support (active position)
Anti-tipping support (active position)
SPEEDY 4all with one-hand operation and knee lever brake with one-hand operation
SPEEDY 4all with one-hand operation and knee lever brake with one-hand operation
SPEEDY 4all with one-hand operation and knee lever brake with one-hand operation
SPEEDY 4all with one-hand operation and knee lever brake with one-hand operation
SPEEDY 4all with one-hand operation and knee lever brake with one-hand operation
SPEEDY 4all with one-hand operation and knee lever brake with one-hand operation
SPEEDY 4all with one-hand operation and knee lever brake with one-hand operation
SPEEDY 4all with one-hand operation and knee lever brake with one-hand operation

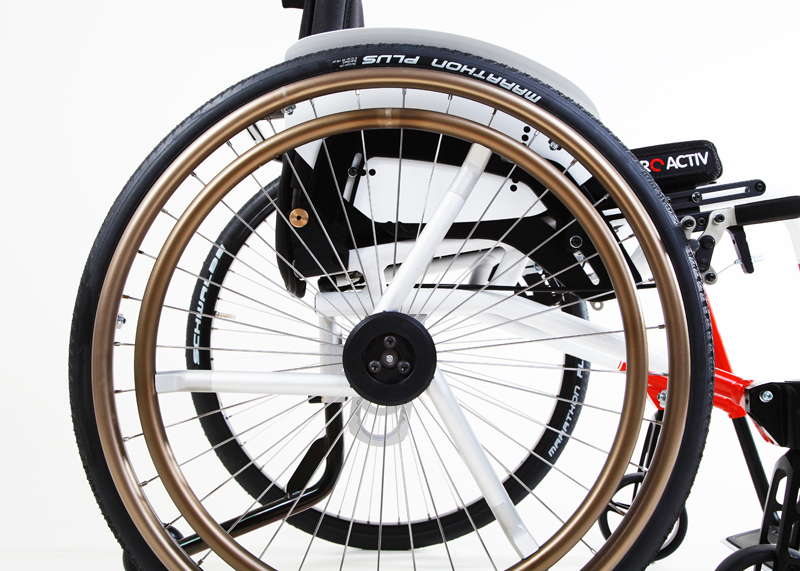

One-hand operation with double handrim
One-hand operation with double handrim
SPEEDY 4all with one-hand operation and knee lever brake with one-hand operation
SPEEDY 4all with one-hand operation and knee lever brake with one-hand operation
SPEEDY 4all with one-hand operation and knee lever brake with one-hand operation
SPEEDY 4all with one-hand operation and knee lever brake with one-hand operation
Aluminium push handles fixed in back tube
Aluminium push handles fixed in back tube
Safety push handles with continuous height adjustment
Back cross bar
Back cross bar
Wheelbase extension, removable and adaptable in one step
Wheelbase extension, removable and adaptable in one step
Wheelbase extension, removable and adaptable in one step
Wheelbase extension, removable and adaptable in one step
SPEEDY 4all, wheel in wheelbase extension for traction when using handbikes and traction devices
SPEEDY 4all, wheel in wheelbase extension for traction when using handbikes and traction devices
SPEEDY 4all with wheelbase extension, removable and adaptable in one step
SPEEDY 4all with wheelbase extension, removable and adaptable in one step
Removing and attaching the wheelbase extension (example: SPEEDY 4all Ergo)
Transferring the wheel to the wheelbase extension (example: SPEEDY 4all Ergo)
Frame pack size
Frame pack size
Pack size
Pack size
SPEEDY 4all with back shell
SPEEDY 4all with back shell
SPEEDY 4all with back shell
SPEEDY 4all with back shell
Knee lever brake
Knee lever brake
Straight frame tubes without a seat fold
Straight frame tubes without a seat fold
SPEEDY 4all combined with the NJ1 adaptive bike
SPEEDY 4all combined with the NJ1 adaptive bike
SPEEDY 4all combined with a FREEWAY steering attachment
SPEEDY 4all combined with a FREEWAY steering attachment
SPEEDY 4all with offroad tyres
SPEEDY 4all with offroad tyres
SPEEDY 4all with offroad tyres
SPEEDY 4all with offroad tyres
SPEEDY 4all with offroad tyres
SPEEDY 4all with offroad tyres
Presentation of one-hand operation by behindert-barrierefrei e.V. (Example: SPEEDY 4all Ergo)
One-hand operation with double handrim (example: SPEEDY 4all Ergo)
Knee lever brake control for one-hand operation (example: SPEEDY 4all Ergo)

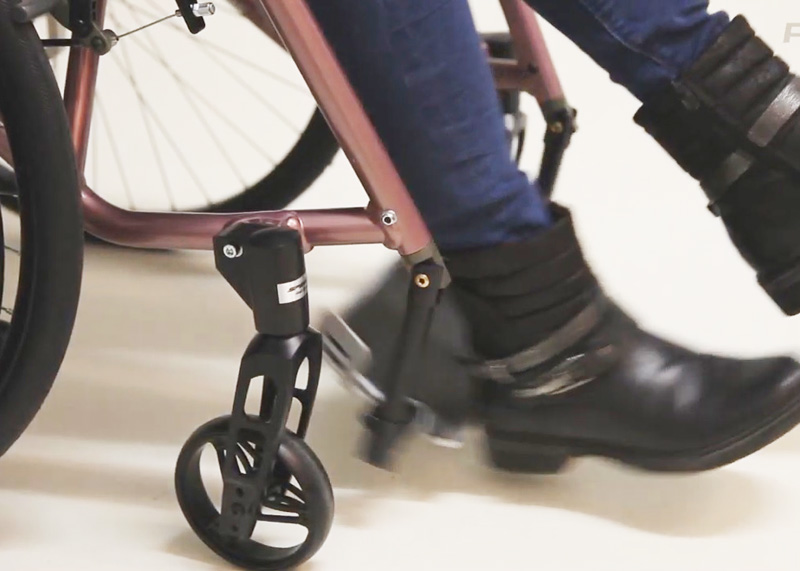

Footrest folds up to the rear with spring locking mechanism (example: SPEEDY 4all Ergo)

SPEEDY 4all

  • The SPEEDY 4all active rigid frame wheelchair combines technical and sporty looks with sophisticated features and adjustment options. With a wide range of optional extras and accessories, an integrated tipping point and seat height adjustment in 1-cm steps, the SPEEDY 4all is ideal for whatever life throws at you and can adapt to your changing needs.

    With the Heavy Duty equipment, the SPEEDY 4all is rated for heavier loads and can carry up to 180 kg.

    With its outstanding robustness, the SPEEDY 4all can also be combined with adaptive bikes, traction devices and steering attachments and other adapters.

    Choose from 6 frame and 3 chassis parameters to configure the SPEEDY 4all frame optimally to the user’s requirements. The front end is available with a G-shape or a V-shape. The upper frame tube is straight, without a seat fold. The flat frame design makes it easier to fit the wheelchair past your body onto the passenger seat.

    Are you an experienced wheelchair user? Do you want a lighter, fixed and welded model of this wheelchair without adjustments? Then SPEEDY F4 is the ideal wheelchair for you.  Details >

Flat frame design with excellent handling characteristics

The flat frame design offers plenty of space when lifting the wheelchair past your body onto the passenger seat.

Frame stems are available in G-shape or V-shape versions for optimal lower leg guidance.

You can choose knee angles of 95°, for a compact seat position, or 105°, for comfort.

Option: One-hand operation

For users with hemiplegia or other restrictions affecting one side of their body, a highly manoeuvrable one-hand operation set-up with a double-gripper wheel drive can be mounted up to a camber of 2°. Different gripper wheel materials, external diameters and distances to the rim meet a wide range of requirements. The drive wheels can be removed using a floating axle for simple handling.

The one-hand operation set-up can be combined with the 'One-handed knee lever brake'. When the brake on one side is activated, a Bowden cable moves the brake pins on both sides.

Sturdy frame for maximum mobility and compatibility

The standard frame version is rated for loads of up to 120 kg. With the Heavy Duty equipment (includes frame inner tubes, diagonal struts and a long wheel plate inlet), the SPEEDY 4all is optimally equipped even for heavier loads of up to 180 kg.

Adapters let you connect traction devices and adaptive bikes in just a few steps, while the sturdy frame ensures optimal handling of the combination. The optional removable wheelbase extension offers even better traction when it is needed. This wheelbase extension adds very little weight to the wheelchair and is easy to attach to the wheelchair without any tools as required.

Compatibility with wheelchair drives like e-fix, e-motion or Twion, for example, can also be provided upon request.

The SPEEDY 4all is crash-tested. Transport restraint systems for wheelchairs in motor vehicles are available as optional extras, as are crash-tested headrests.

Simple transport

The small pack size due to the folding backrest and the flat-frame design as well as the loading weight starting from as little as 6.8 kg (total weight starting from 9.9 kg) make it easy to load and transport.

Various back systems

The backrest can be folded and adjusted at seven different angles (without tools), offering flexible seat positions. It is particularly helpful when using adaptive bikes and traction devices, as the ability to adjust the backrest angle forward (perpendicular to the ground) is very useful to compensate for the raised caster wheels. This backrest is available as a lightweight adaptable back with back padding (belt system for optimal adjustment of slack and padded lumbar support) or as a sturdy back shell (very sturdy with fixed slack and adjustable lumbar support).

The ERGO Back backrest bar is also available as an option in addition to the adjustable back and the back shell. This backrest bar relieves the strain on your back by allowing you to lean back, and adds an attractive visual touch. The recessed gripping areas mean that you do not need any push handles, and also prevent unwelcome pushing by others.

Range of seat systems

A range of seat systems is available for the SPEEDY 4all. The ‘open belt system’ seat cover lets users adjust the pressure distribution using belts. The ‘body contour’ seat cover provides a cushioning effect, absorbing impacts and helping prevent pressure ulcers. It is highly breathable and sturdy (the material is double-stitched to counteract the ‘hammock’ effect). You can also select seat plates as a sturdy seat system with no slack.

Wide range of optional extras and accessories

Each SPEEDY 4all is a customised model, with frame dimensions and equipment that are always tailored to the wheelchair user’s needs. You can choose from a wide range of equipment for the SPEEDY 4all, including footrests, brakes, push handles, back and seat systems, clothing guards, armrests, as well as drive and caster wheels.

Device register item number: 18.50.03.5021
Special features: Adjustment options | Flat frame shape without seat fold
Number of configurable frame and chassis parameters: 6 frames and 3 chassis
Seat fold: No seat fold, upper frame tubes are straight
Leg guidance at thigh level: No frame retraction possible, guidance via straight frame tubes only
Lower leg guidance: G- or V-shape frame stems available
Front frame angle: 105°, 95°
Abduction: -
Lift function/seat height adjustment: -
Seat width: 30 - 52 cm (in 1-cm steps)
Seat depth: 36 - 48 cm (in 1-cm steps)
Back height: 20 - 48 cm (in 1-cm steps)
Lower leg length: 37 - 50 cm (in 1-cm steps)
Rear seat height: 39 - 47 cm (in 1-cm steps)
Front seat height: 44 - 52 cm (in 1-cm steps)
Tipping point: 1 - 10 cm (in 1-cm steps)
Adjustment of tipping point: In 1-cm steps
Adjustment of seat height/seat angle: Seat angle adjustable via wheel plates, caster forks and caster wheel
Total product weight: Starting at 9.9 kg
Max. standard load weight: Up to 120 kg
Max. load weight for Heavy Duty: Up to 180 kg
Possible drive wheel sizes: 24″, 25″, 26″
Possible drive wheel camber: 1°, 4°, 6°
Wheelbase extension: Removable wheelbase extension
One-hand operation: Optional, with 2° wheel camber
Integral parking brake: -
Wheelchair drive attachment: Optional, e-fix, Twion, e-motion, other drives on request
Approval for passenger transport in motor vehicles/Crash-tested: Approved
Transport restraint system: Optional
Changes excepted. Details see order form. Individual dimensions on request.
