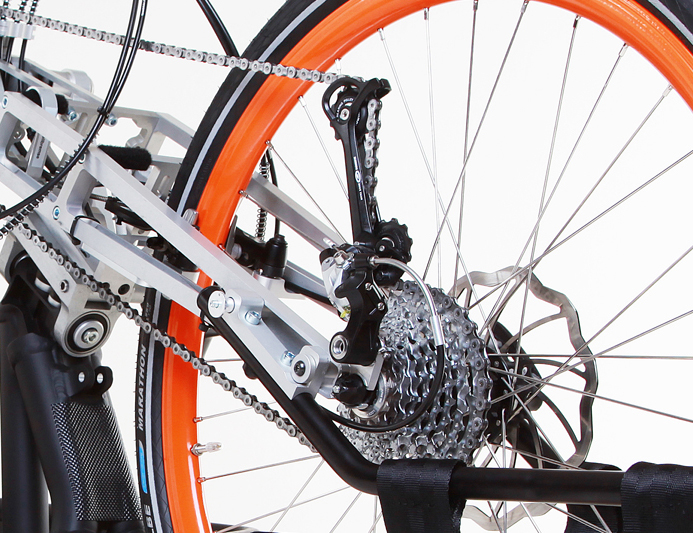

NJ1 compact bike with derailleur gear system
NJ1 compact bike with derailleur gear system
NJ1 compact bike with derailleur gear system
NJ1 compact bike with derailleur gear system
NJ1 compact bike with derailleur gear system
NJ1 compact bike with derailleur gear system
Running wheel can be removed via the quick release lever
Running wheel can be removed via the quick release lever

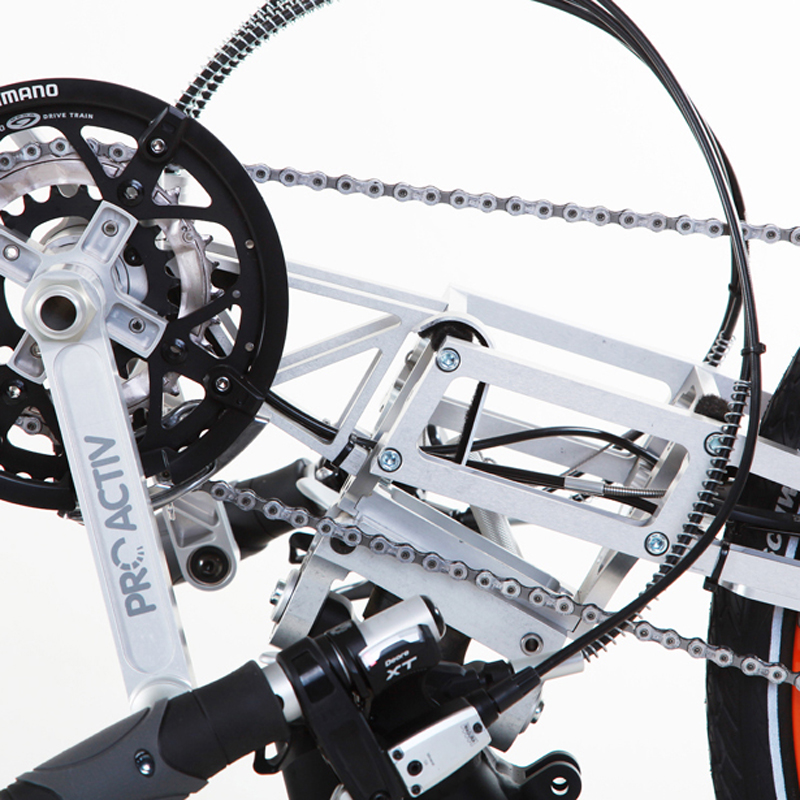

Pack size, drive unit disconnected from the chassis
Pack size, drive unit disconnected from the chassis
Pack size, drive unit disconnected from the chassis
Pack size, drive unit disconnected from the chassis
Angle of backrest adjustable
Angle of backrest adjustable
Angle of backrest adjustable
Angle of backrest adjustable

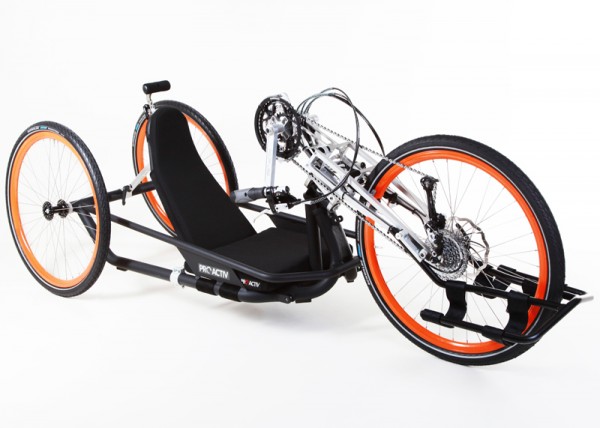

NJ1 Compact bike
NJ1 Compact bike
NJ1 Compact bike
NJ1 Compact bike
NJ1 Compact bike
NJ1 Compact bike
NJ1 Compact bike
NJ1 Compact bike
NJ1 Compact bike
NJ1 Compact bike

NJ1 compact bike

  • The all-rounder for ambitious leisure cyclists. Its modular design, aerodynamic characteristics and outstanding workmanship guarantee 100% riding pleasure.

    The NJ1 compact bike consists of a drive unit and a stable girder chassis, which can be separated for transportation within seconds.

    Top-quality gear and brake components from the bicycle industry ensure precise switching of gears and braking. The handbike equipment is variable, from touring bike to sports bike. With its adjusted steering geometry, long wheelbase and even weight distribution the NJ1 compact bike has excellent handling characteristics.

    The back angle can be adjusted without any tools. That way it can also be quickly adjusted to your personal needs when you are on the road.

All-rounder with a comprehensive range of optional equipment

The NJ1 compact bike is very sturdy and offers excellent handling characteristics thanks to its design and the materials used. The wide range of components and equipment lets every biker tailor the NJ1 optimally to their personal needs.

Tool-free dismantling enables a small pack size

Just a few steps turn the compact bike into an easy-to-stow package by separating the chassis and drive unit using an eccentric quick release clamp. The rear wheels can be removed via a quick-release axle. The NJ1 is perfect for loading with an overall weight starting at just 15.8 kg.

Adjustability creates flexibility

The back angle can be infinitely adjusted without any tools. The back position is also adjustable lengthways. That allows it to be adapted to changing requirements at any time.

Different gear shift systems

A wide range of high-quality mechanical hub gears from Shimano and Rohloff are available. Mechanical and electric derailleur systems from Shimano are also available. They can be operated from the handle or using a chin control. This allows every user find the perfect equipment for their needs. A bottom bracket gear system that allows derailleur systems to be shifted while at a standstill can also be combined, which is very helpful for hill starts, for example.

Effective brakes

Where derailleur gear systems or hub gear units with freewheel hubs are equipped, you can use the high-quality, reliable disk and rim brakes to slow down and brake precisely for first-class control. They are operated from the handle.

Optimum adjustment to the user’s requirements and capabilities

With a range of bottom bracket supports, grip widths and crank lengths, the NJ1 compact bike dimensions can be perfectly adapted to the user’s needs for an enjoyable ride and perfect control. The height and angle of the neck rest can also be adjusted.

The adjustable bottom bracket supports can be chosen as an option, which can be adjusted in angle and length to meet the user’s changing needs.

Wide range of optional extras and accessories

Each NJ1 compact bike is a customised model, with dimensions and equipment that are always tailored to the wheelchair user’s needs.

Users with functional impairments can choose optional features like different handles and supports.

Special features: Sturdy with excellent handling characteristics; can be equipped to become anything from touring to a sports bike
Total weight: Starting at 15.8 kg
Max. standard load weight: Up to 100 kg user load capacity
Max. load weight for Heavy Duty: Up to 120 kg user load capacity
Frame lengths: 104 cm (short frame), 116 cm (long frame)
Seat widths: 39 cm (narrow frame), 43 cm (wide frame)
Total bike length: 197 cm (short frame), 209 cm (long frame)
Total bike widths: 54.5 cm (narrow frame), 58.5 cm (wide frame)
Ground clearance: 11 cm
Pack size: Chassis starting at 104 x 43 x 39 cm
Drive unit starting at 105 x 43 x 66 cm
Possible drive wheel sizes: 26"
Available running wheel or rear wheel sizes: 26"
Grip widths: Standard cranks:
40 cm, 45 cm, 50 cm
Flared tetra cranks:
48 cm, 53 cm, 58 cm
Crank lengths: Standard cranks:
155 mm, 175 mm, 195 mm, custom
Tetra cranks:
155 mm, 175 mm, custom
Gear systems: Derailleur gear systems controlled from the handle or via chin control |
Hub gear controlled from the handle |
Bottom bracket gear systems
Brakes: Disk brakes, rim brakes, back-pedelling brake
Motors: -
Pushing aid/Starting aid: -
Batteries: -
Double rechargeable battery: -
Recuperation: -
Display: -
Changes excepted. Details see order form. Individual dimensions on request.
