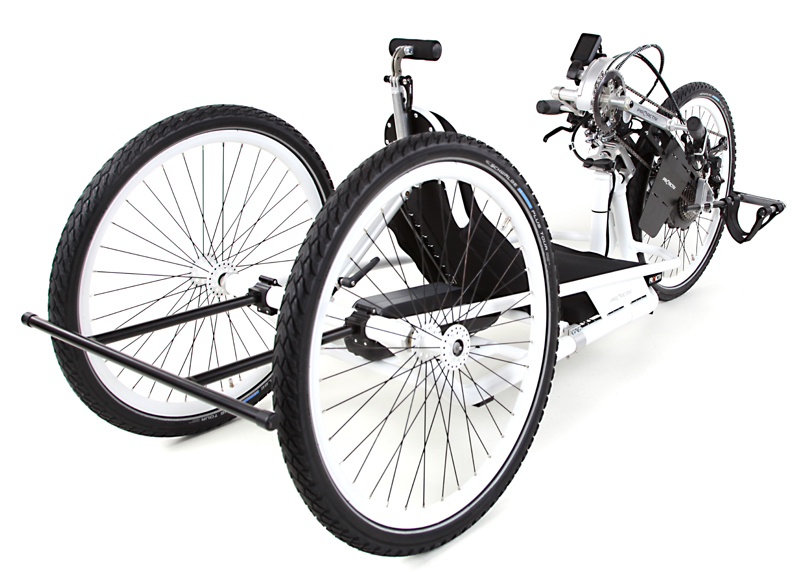

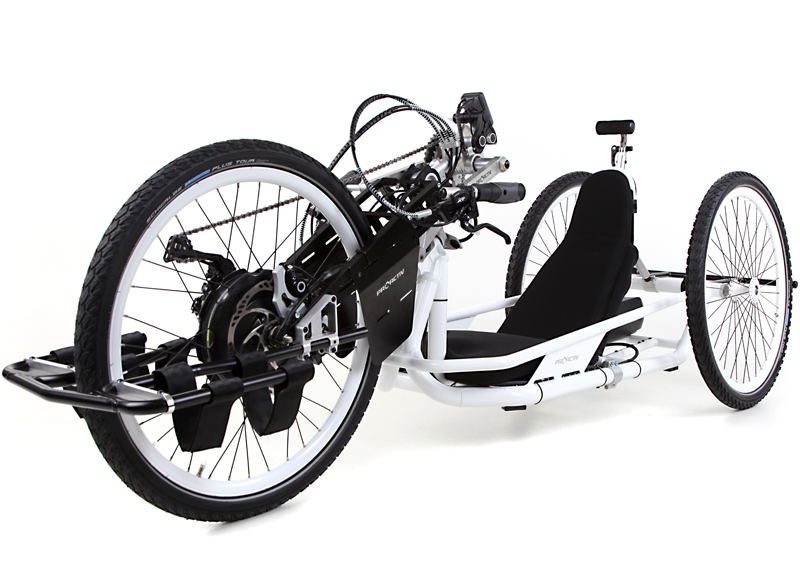

NJ1 el. compact bike

  • The NJ1 el. compact bike consists of a drive unit and a stable girder chassis, which can be separated for transportation within seconds.

    The NJ1 el. compact bike is equipped with a pedelec system. When cranking, the drive system supports the rider at the set support level with speeds of up to 24.9 km/h. This allows users to cover long distances faster and with less exertion.

    The neodrives-brand drive system is a high-quality pedelec hub drive that is made in Germany and provides silent support. Energy is recuperated to recharge the battery when travelling downhill.

    Top-quality gear and brake components from the bicycle industry ensure precise switching of gears and braking. The handbike equipment is variable, from touring bike to sports bike.

Silent neodrives hub drive

The neodrives hub motor is gearless. As a result, the ride is absolutely silent and free from vibrations, which contributes to a high-quality ride. The sensitive power sensor in the motor lets the user clearly feel the direct response when accelerating.

With 5 support levels (60%, 120%, 180%, 240%, 300%), the neodrives drive system supports the rider at speeds of up to 24.9 km/h. The maximum torque of 40 Nm is always fully available to the rider, no matter what gear is selected. The drive system stands out with its agile, yet harmonious ride characteristics and intuitive operation, as well as being very low-maintenance.

A speed of up to 6 km/h can be reached without cranking using the starting assistant or pushing aid.

Double the range with the double battery

Users who enjoy longer trips can add an optional double battery for twice the range. The change-over device lets you conveniently switch between the two rechargeable batteries using magnetic connectors on the bottom bracket support. This is also possible without complete finger function.

Recuperation for added range

A special feature of the neodrives hub motor is the ability to charge the battery via recuperation when travelling downhill. This is not only environmentally friendly, it also increases the range even more especially on longer tours. Recuperation extends the battery range by about 10%. At the same time, in this mode, the motor provides braking support and reduces wear on the brake pads. The additional braking effect offers added convenience for neodrives users.

Tool-free dismantling enables a small pack size

Just a few steps turn the compact bike into an easy-to-stow package by separating the chassis and drive unit using an eccentric quick release clamp. The rear wheels can be removed via a quick-release axle and the rechargeable batteries can be removed from their brackets. The NJ1 el. compact bike is ideal for transport with loading weights from 13 kg (drive unit) and 7.9 kg (chassis).

Adjustability creates flexibility

The back angle can be infinitely adjusted without any tools. The back position is also adjustable lengthways. That allows it to be adapted to changing requirements at any time.

Different gear shift systems

The wide range of high-quality mechanical and electric derailleur gear systems from Shimano ensures that every user can find their ideal equipment. Users can change gears on the handle or using a chin control. A bottom bracket gear system that allows gear changes while at a standstill can also be combined, which is very helpful for hill starts, for example.

Effective brakes

The high-quality, reliable disk and rim brakes slow you down as required and let you brake with pinpoint precision for first-class control. They are operated from the handle. An optional hydraulic backpedal disk brake (with crank release function) is also available.

Option: Hydraulic backpedal disk brake with crank release function for reversing

The NJ1 el. compact bike handbike is also available with a convenient hydraulic back-pedelling brake as an option. There is also the option of a crank freewheel for backpedalling. The cranks can be decoupled to manoeuvre back and forth, and you can conveniently reverse using the handrims – ideal for manoeuvring in tight spaces.

Optimum adjustment to the user’s requirements and capabilities

With a range of bottom bracket supports, grip widths and crank lengths, the NJ1 el. compact bike dimensions can be adapted perfectly to the user’s needs for an enjoyable ride and perfect control. The height and angle of the neck rest can also be adjusted.

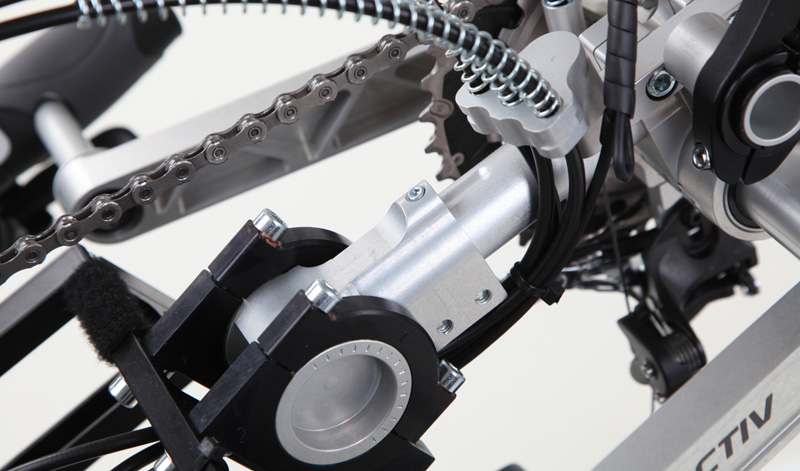

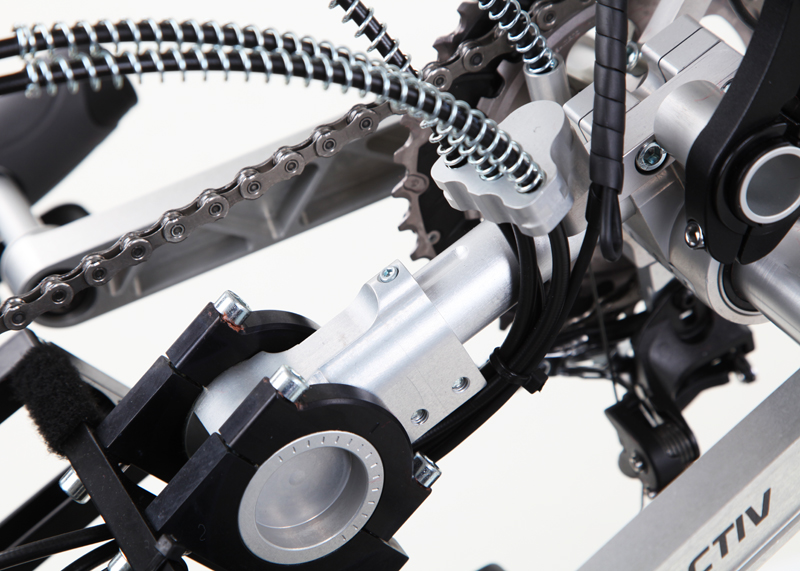

The adjustable bottom bracket supports can be chosen as an option, which can be adjusted in angle and length to meet the user’s changing needs.

Wide range of optional extras and accessories

Each NJ1 el. compact bike is a customised model, with dimensions and equipment that are always tailored to the user’s needs.

Users with functional impairments can choose optional features like different handles and supports.

Special features: Pedelec system with silent hub motor
Total weight: Starting at 23.8 kg (with rechargeable battery)
Max. standard load weight: Up to 100 kg user load capacity
Max. load weight for Heavy Duty: Up to 120 kg user load capacity
Frame lengths: 116 cm
Seat widths: 39 cm (narrow frame), 43 cm (wide frame)
Total bike length: 197 cm (short frame), 209 cm (long frame)
Total bike widths: 54.5 cm (narrow frame), 58.5 cm (wide frame)
Ground clearance: 11 cm
Pack size: Chassis starting at 104 x 43 x 39 cm
Drive unit starting at 105 x 43 x 66 cm
Possible drive wheel sizes: 26"
Available running wheel or rear wheel sizes: 26"
Grip widths: Standard cranks:
40 cm, 45 cm, 50 cm
Flared tetra cranks:
48 cm, 53 cm, 58 cm
Crank lengths: Standard cranks:
155 mm, 175 mm, 195 mm, custom
Tetra cranks:
155 mm, 175 mm, custom
Gear systems: Derailleur gear systems controlled from the handle or chin control |
Bottom bracket gear system
Brakes: Disk brakes, rim brake, back-pedal brake
Motors: Hub motor:
Neodrives | 12/40 Nm | 250 W | 4.6 kg
Pushing aid/Starting aid: Up to 6 km/h forwards and up to 1.5 km/h in reverse
Rechargeable batteries: Neodrives G3 DT 36 V | 16 Ah | 576 Wh | 3.6 kg | range 45 - 75 km
Double rechargeable battery: Possible; switch via change-over device on the bottom bracket support
Recuperation: 2 recuperation levels, downhill assistant
Display: 2.4" colour display
Changes excepted. Details see order form. Individual dimensions on request.
