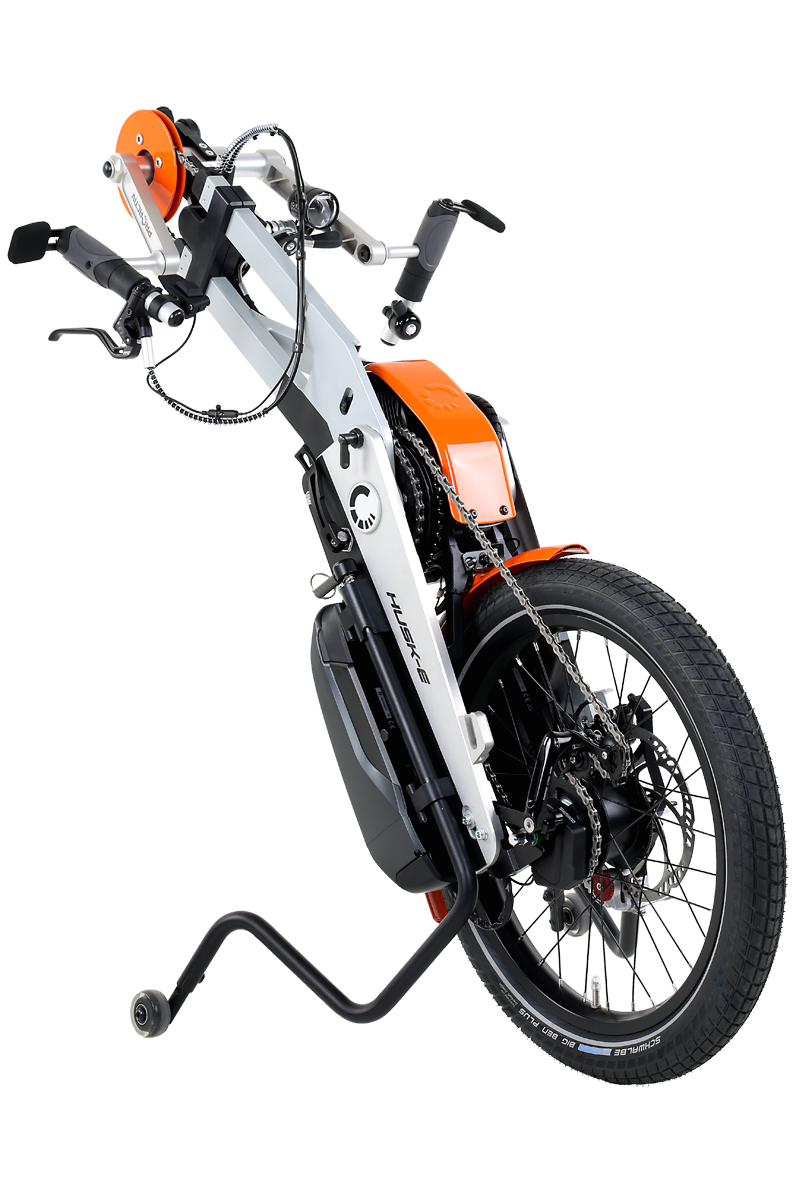

HUSK-E adaptive bike

HUSK-E Shimano version

• designed for uneven terrain, hills, mountainous topography, long climbs and demanding routes
• for users with muscle power who want to extend their range of action and also be active for their health
• derailleur and hub gears possible
• disc brake with brake lever or coaster brake possible

With 85 Nm torque, the Shimano drive system offers very powerful support. It is suitable for riders who already have the appropriate power level to be able to operate the cranks so powerfully from a standing start that the response of the motor system is there right from the start. The HUSK-E Shimano is the right choice for hills, mountainous terrain, long climbs and uneven terrain. Battery variants up to 630 Wh offer long ranges of up to 85 km. A speed of up to 4 km/h can be achieved without cranking using the start-up support.

The HUSK-E Shimano can be equipped with derailleur gears or electronic hub gears. The switching process can be carried out with Rapid Fire levers on the handle, with buttons on the chin control or via automatic switching.

Braking can take place via a hydraulic disc brake system or a mechanical coaster brake with crank-free function.

Version HUSK-E Neodrives

• designed for flat to hilly terrain without long steep climbs
• for users with little muscle power and for all those who need a drive with high power assistance
• derailleur gears possible
• disc brake with brake lever or coaster brake possible

This HUSK-E version with its 40 Nm torque is designed for tours on flat to hilly terrain (without long steep climbs). The immediate response when starting off and the even support offer a great advantage for riders with limited strength. A speed of up to 6 km/h can be achieved without cranking using the start-up assistance. The Neodrives hub motor enables completely silent and vibration-free operation. The battery offers a range of up to 75 km.

Electronic derailleur gears with button or chin control operation or mechanical derailleur gears with Rapid Fire operation are possible.

Braking can take place via a hydraulic disc brake system or a mechanical coaster brake with crank-free function.

HUSK-E mechanical version

• for active biking on any terrain
• for riders who do not require electric assistance and are physically fit enough
• derailleur gears possible
• disc brake with brake lever or coaster brake possible
• simple retrofitting of a Neodrives drive possible

The mechanical HUSK-E version is an impressive manual bike with an ergonomic design that provides optimum support for long rides. Ideal for anyone who wants to ride actively and improve their endurance.

Electronic derailleur gears with button or chin control operation or mechanical derailleur gears with Rapid Fire operation are available.

Braking can take place via a hydraulic disc brake system or a mechanical coaster brake with crank-free function.

Mechanical coaster brake

The HUSK-E adaptive bike is optionally available with a mechanical coaster brake, which is easy to operate. This option also gives the rider the option of freewheeling to the rear. The cranks can be decoupled and the bike can be easily reversed using the handrims - ideal for maneuvering in tight spaces.

Easy handling when coupling and uncoupling thanks to the parking stand

The parking stand makes coupling and uncoupling easier, as the bike is parked at the required adaptation height. The parking stand also allows the bike to be parked safely when uncoupled. The parking stand can be folded onto the product in one easy step while riding to save space.

Stable adaptation

Adaptation takes place via a central adapter or front adapter, which can be connected and disconnected in a few simple steps. When uncoupled, hardly any additional weight remains on the wheelchair and the wheelchair does not experience any functional restrictions (e.g. folding mechanism). The adapter can be used for all PRO ACTIV adaptive bikes, traction and attachment devices with the same wheel size: ONE adapter for MANY combinations.

Ideal for transport

The bottom bracket support can be folded down without tools using quick-release levers and locking bolts, resulting in a small pack size for transport.

The chain is guided in the bottom bracket support. This keeps the chain ‘tidy’ and prevents it from being damaged or soiling the car or other objects.

An optional pannier holder system is available for the HUSK-E adaptive bike. The panniers can be attached and removed in seconds without tools, making them particularly flexible to use.

Optimum adaptation to the rider's requirements

Different grip widths and crank lengths allow the HUSK-E adaptive bike to be perfectly customised to the user for a comfortable ride and optimum control. The angle of the bottom bracket support can be changed without tools using the quick-release lever (in two locking positions). The length of the bottom bracket support can be subsequently adjusted to adapt to changes in the rider's requirements. The adapter can also be adjusted in angle, height and length.

Long range thanks to large battery capacity & double battery holder

With ranges of up to 85 km and the option of a double battery holder to double the range, even long tours are no problem. With the changeover device, it is easy to switch between the two batteries using magnetic plugs. This is also possible without the full finger function.
