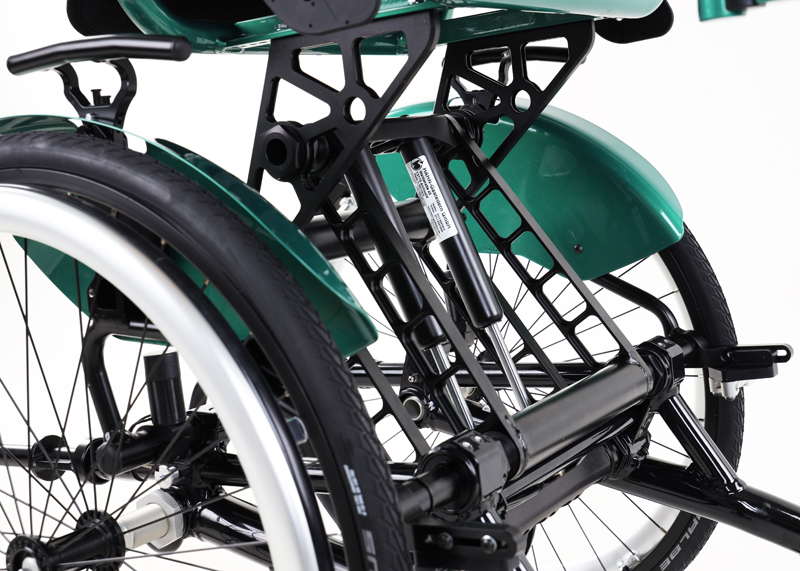

Lifting mechanism
Lifting mechanism
Integral brake
Integral brake
GIF: Integral brake
GIF: Integral brake
Tilt support in active position
Tilt support in active position
Tilt support in passive position
Tilt support in passive position
GIF: Tilt support active/passive
GIF: Tilt support active/passive
Clothing guard and release handle for the lifting mechanism
Clothing guard and release handle for the lifting mechanism
Clothing guard and release handle for the lifting mechanism
Clothing guard and release handle for the lifting mechanism
Steering wheel with aluminium rim
Steering wheel with aluminium rim
Packing size
Packing size
Push handle
Push handle
Seat unit lifted upwards
Seat unit lifted upwards
Clothing guard and release handle for the lifting mechanism
Clothing guard and release handle for the lifting mechanism
Clothing guard and release handle for the lifting mechanism
Clothing guard and release handle for the lifting mechanism
Video: LIFT activ active wheelchair with 30 cm seat height adjustment
Video: Insight into the production of the LIFT activ active wheelchair in Dotternhausen (Germany)
Video: Gunnar Blank stellt den LIFT activ auf der Messe RehaCare 2022 vor
Video: Interview by Oli and Willi from behindert-barrierefrei e.V. with developer Stephan Pluppins about the LIFT activ

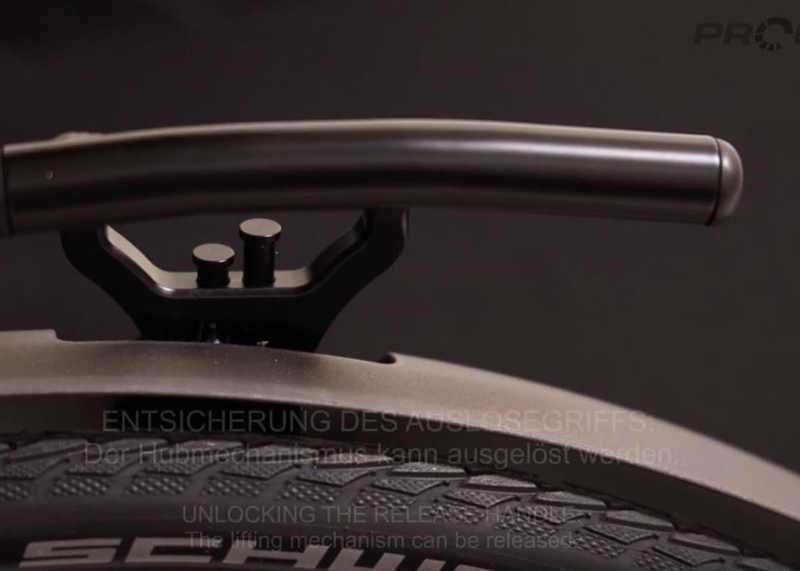

Video: Entriegelung und Sperrung der Hubfunktion

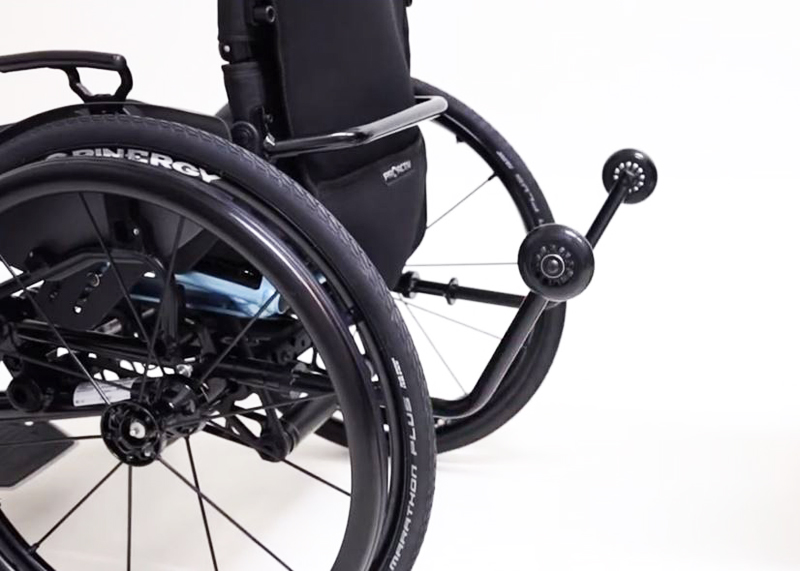

Video: Kippstütze aktiv & passiv
Video: Kippstütze aktiv & passiv

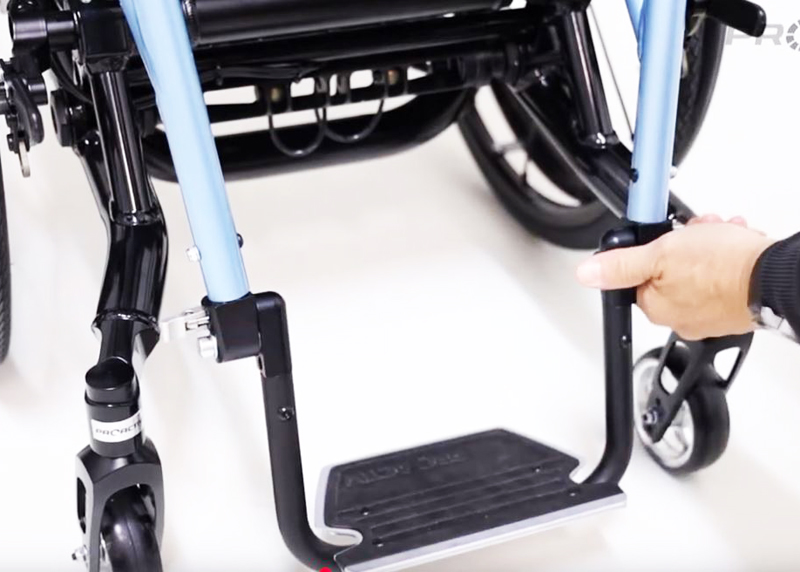

Fußstütze nach hinten hochfaltbar
Fußstütze nach hinten hochfaltbar

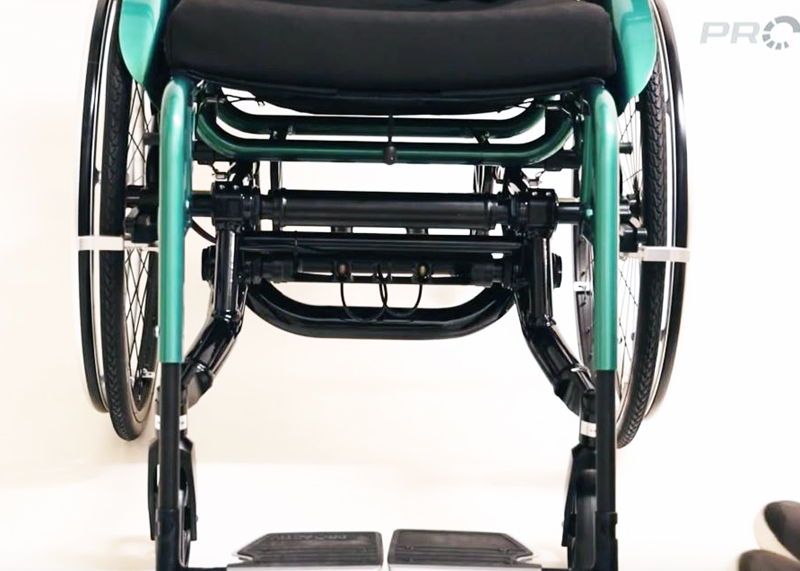

Rahmenvorbau abnehmbar, abschwenkbar mit geteilter Fußstütze

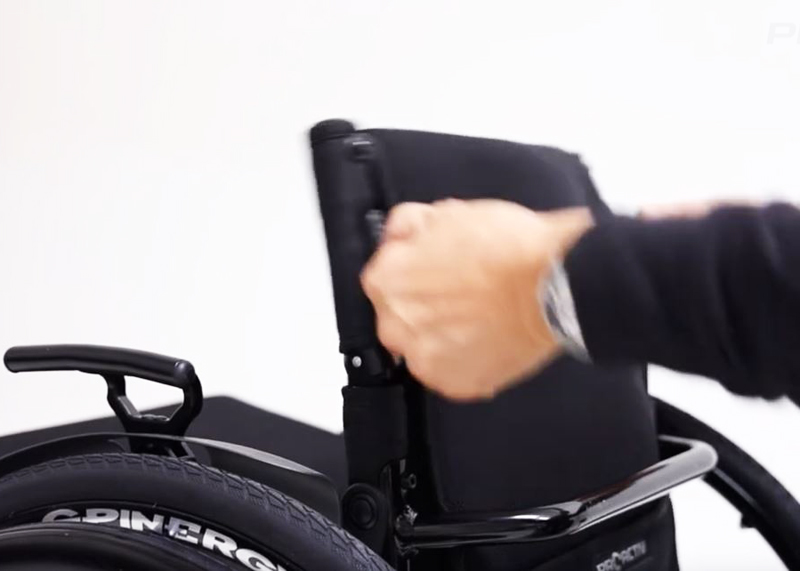

Rückensystem mit Lordosegelenk abklappbar
Zu den Produktvideos

LIFT activ

  • The infinitely variable seat height adjustment of the LIFT activ makes all the difference - every day. It enables a significantly extended radius of action in everyday and working life. Conventional furniture, kitchen equipment or work surfaces can be used as a matter of course - without the need for costly conversion work. You gain valuable centimetres at the touch of a button: You can effortlessly operate printers or machines at working height, reach wall units, high shelves or tool walls and conveniently reach for products on the upper shelves in the supermarket.

    Whether at your desk, in the workshop, at the shop counter, in the laboratory or in the kitchen at home - the LIFT activ adapts to your situation and creates new possibilities. The seat height adjustment also provides more comfort and freedom of movement for your hobbies: whether you are painting at an easel, tinkering at a workbench, repotting plants, taking photographs or making music. Thanks to the higher sitting position, conversations at eye level while standing are no longer a problem. This promotes social participation in everyday private and professional life and makes it easier to socialise with other people. More independence, less physical strain - the LIFT activ brings mobility and flexibility to every area of your life.

    The LIFT activ is available in two versions: With the LIFT activ with manual seat height adjustment, the seat height adjustment is triggered by an ergonomic handle. The seat then lifts up to 30cm with just a little muscle power. With the LIFT activ with electric seat height adjustment, you can reach the desired working height and new action ranges at the touch of a button.

LIFT activ gets you to the right level – in your job, everyday life and leisure

Thanks to its low weight, the LIFT activ is ideal for transport and for using the wheelchair at work, in everyday life and leisure activities. Reaching the files on the top shelf at the office in the morning, putting the dishes in the wall cupboard above the worktop in the kitchen at home at lunchtime, and having a conversation with family and friends at eye level at the bar in the evening – that’s no problem with the LIFT activ.

The LIFT activ is also the ideal companion for professionals who frequently change their place of work during the course of the day; for example, an architect who travels between the office and various construction sites.

LIFT activ with manual seat height adjustment

With the LIFT activ with manual seat height adjustment, the seat height is infinitely adjustable using gas pressure springs. The seat lifts up to 30 cm with just a little muscle power. The release handle can be secured so that the handle can be used as a stand-up aid without triggering the lift function.
Lifting up and down video >>

LIFT activ with electric seat height adjustment

On the LIFT activ with electric seat height adjustment, the seat height is adjusted using hydraulic cylinders. The lifting function is triggered by operating buttons.

Simple transport

Easy to transport in a car boot by simply taking the wheelchair apart into its modules; no tools are necessary.

Use as a standing-up aid

People whose conditions leave them some movement in their legs (such as multiple sclerosis, muscular dystrophy, partial paraplegia or partial paralysis with some movement in the legs, spina bifida, prosthesis wearers or neurological diseases leaving some movement in the legs), can also use the LIFT activ to help themselves stand up.

For this use, it makes sense to select the ‘Divided footrest with swivel frame stem’ or another footrest that can be folded or swivelled away.

Option: Removable frame stem, swivelling with split footrest

The frame stem can also be swivelled out and removed, so that the frame ends at the front end of the fabric and leaves a lot of space for transfer.
Video on the operation of the frame stem removable >>

Various back systems

The 7-way angle-adjustable and foldable backrest (without tools) (as an adjustable backrest or back shell) offers flexibility for the seating position and enables a small pack size. The backrest can be folded down at the lumbar joint, which also optimises the pack size for transport.

The ERGO Back backrest bar is also available as an option in addition to the adjustable back and the back shell. This backrest bar relieves the strain on your back by allowing you to lean back, and adds an attractive visual touch. The recessed gripping areas mean that you do not need any push handles, and also prevent unwelcome pushing by others.
Video of the back system with removable lordosis joint >>

Range of seat systems

A range of seat systems are available for the LIFT activ. The ‘open belt system’ seat cover lets users adjust the pressure distribution using belts. The ‘body contour’ seat cover provides a cushioning effect, absorbing impacts and helping prevent pressure ulcers. It is highly breathable and sturdy (the material is double-stitched to counteract the ‘hammock’ effect).

Wide range of optional extras and accessories

Each LIFT activ is a customised model, with frame dimensions and equipment that are always tailored to the wheelchair user’s needs. You can choose from a wide range of equipment for the LIFT activ, including footrests, brakes, push handles, back and seat systems, as well as drive and caster wheels.

Special features: Mechanical or electric seat height adjustment | Adjustment options | Lightweight
Number of configurable frame and chassis parameters: 7
Seat fold: No seat fold, upper frame tubes are straight
Leg guidance at thigh level: Guidance by straight frame tubes
Lower leg guidance: G- or V-shape frame stems available
Front frame angle: 105°, 100°
Abduction: -
Lift function / seat height adjustment: Continuous mechanical or electric seat height adjustment, range 30 cm
Seat width: 35 - 46 cm (in 1 cm steps)
Seat depth: 35 - 48 cm (in 1 cm steps)
Back height: 20 - 48 cm (in 1 cm steps)
Lower leg length: 30 - 48 cm (in 1 cm steps)
Rear seat height: 41 - 43 cm (in 1-cm steps)
Front seat height: 45 - 51 cm (in 1-cm steps)
Tipping point: 6 - 10 cm (in 1 cm steps)
Adjustment of tipping point: In 1 cm steps
Adjustment of seat height/seat angle: -
Total product weight: mechanical from 14.5 kg & electric from 23 kg
Max. standard load weight: Up to 100 kg
Max. load weight for Heavy Duty: -
Possible front wheel sizes: 24'', 25'', 26''
Possible drive wheel camber: 1°, 2,5°, 4°
Wheelbase extension: -
One-hand drive: -
Integral parking brake: Optional
Wheelchair drive attachment: Optional, e-motion M25
Approval for passenger transport in motor vehicles / crash-tested: currently not approved
Transport restraint system: currently unavailable
Changes excepted. Details see order form. Individual dimensions on request.
