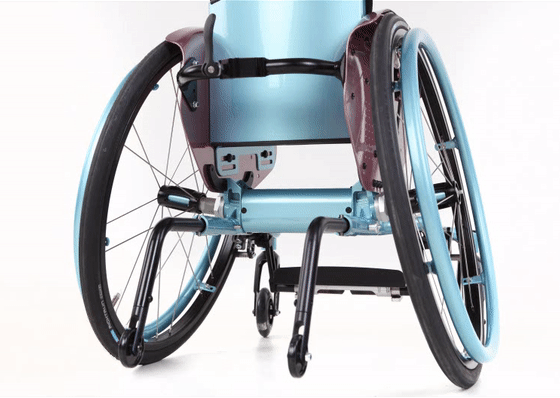

Anti-tipping supports (active position)
Anti-tipping supports (active position)
Anti-tipping supports (passive position)
Anti-tipping supports (passive position)
Anti-tipping supports active/passive position
Anti-tipping supports active/passive position
Video zur Kippstütze: Wechsel zwischen Aktiv- und Passivstellung
LITTY 4all with central push handle
LITTY 4all with central push handle
LITTY 4all with central push handle
LITTY 4all with central push handle
LITTY 4all with central push handle
LITTY 4all with central push handle
LITTY 4all with central push handle
LITTY 4all with central push handle
LITTY 4all with central push handle
LITTY 4all with central push handle
LITTY 4all with central push handle
LITTY 4all with central push handle
LITTY 4all with central push handle
LITTY 4all with central push handle
LITTY 4all with central push handle
LITTY 4all with central push handle
LITTY 4all with central push handle
LITTY 4all with central push handle
LITTY 4all with central push handle
LITTY 4all with central push handle
Back cross bar
Back cross bar
Adjustment options for the ergonomic back shell
Adjustment options for the ergonomic back shell
Central push handle, folded away and lowered
Central push handle, folded away and lowered
Seat plate as a sturdy seat system or potential base for individual, anatomically shaped seat systems by specialist dealers
Seat plate as a sturdy seat system or potential base for individual, anatomically shaped seat systems by specialist dealers
Footrest with a wide range of settings and positions, folds up to the rear
Footrest with a wide range of settings and positions, folds up to the rear
LITTY 4all with brake for accompanying person
LITTY 4all with brake for accompanying person
Aluminium central push handle for brake handles with fold away handle area
Aluminium central push handle for brake handles with fold away handle area
Presentation of the PRO ACTIV range of children’s wheelchairs by behindert-barrierefrei e.V.

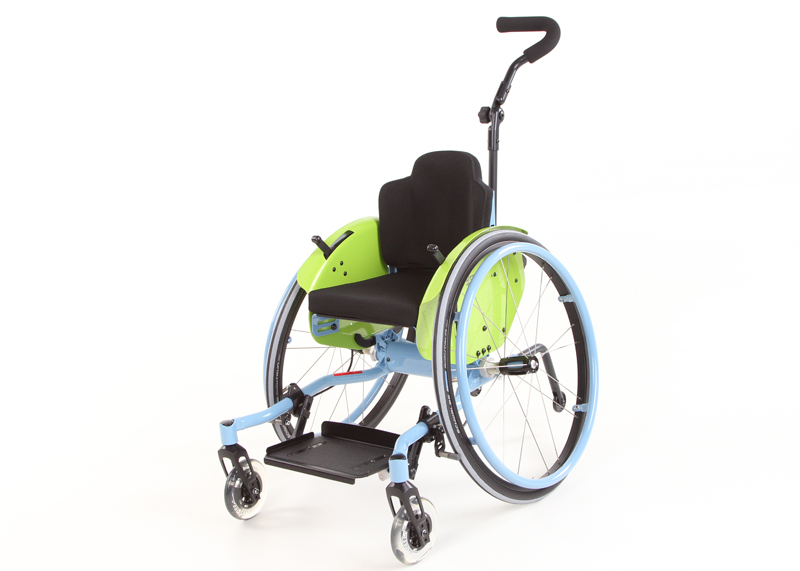

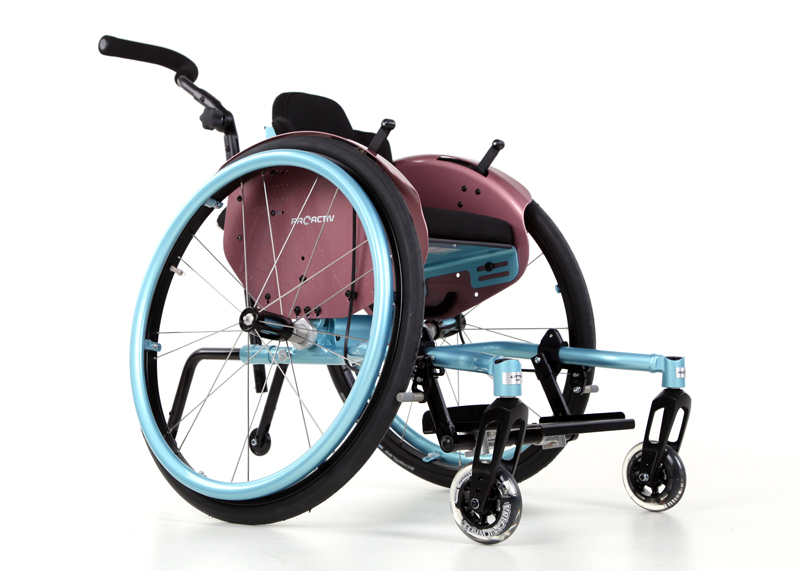

LITTY 4all

  • The LITTY 4all wheelchair for children impresses with its frame geometry optimised for children, and its comprehensive adjustment options.

    Its low overall weight starting at 6.7 kg and its optimal easy running characteristics also make the LITTY 4all an ideal companion for children whose arms are not so strong.

    The footrest offers a wide range of adjustments and positions, allowing users to change the leg position and front frame length. The grid pattern in the clothing guard also allows the seat height and angle, the back shell angle and the seat depth to be adjusted.

    There are 5 frame and 4 chassis parameters to choose from to adapt the LITTY 4all optimally to the user. Seat widths as narrow as 18 cm are available.

    Are you looking for a wheelchair with these exact properties, but want a frame tailored even more individually to your needs? Then the LITTY 4you is the ideal wheelchair for you.  Details >

The adjustment options and the growing feature offer flexibility

The seat position or the position of the seat plate is adjusted in the clothing guard using the given grid. It offers wide ranges of adjustment.

The LITTY 4all can grow with the child by replacing component groups (depending on the seat width change required, the axle tube, the seat plate, the back shell, the back cross bar and, depending on the situation, other component groups), making it a reliable companion for many years.

Maximum abduction possible

The frame structure, without restricting front frame tubes, allows for a maximum-abduction sitting position.

Optimal brakes for children and accompanying persons

The brake control of the knee lever brake in the clothing guard is located ergonomically within ideal reach for children. The brake pin is attached under the centre of the drive wheel far out of reach, preventing fingers from being pinched.

A locking knee lever brake can also be installed for the accompanying person, which allows them to operate the brake via the push handles.

Various pushing devices for accompanying persons

The central push handles and push handle bars, which adjust easily and continuously in height, let the accompanying person push the wheelchair with one hand, keeping the other hand free for shopping or siblings. With the fold away handle area, the handle/bar angle is easy to adjust without tools. The handle/bar can also be folded away completely for transport. The push handle bar leaves plenty of room for hands, allowing the accompanying person to hold with one or two hands.

The ‘Safety push handles, back-positioned’ are also continuously height-adjustable and can be chosen with a lateral handle offset for a wider grip. This push handle version is operated with both hands.

Option: Foot support folds up to the rear

This ‘Backward folding foot support’ makes it easier to transfer in and out of the wheelchair for children who are still able to stand.

Option: Therapy table

The therapy table is a useful work surface and can be removed in just a few steps without tools using the Quick-pin. Thanks to the continuous height, length and angle adjustment, the therapy table can be optimised for the child's needs.

Sturdy and ergonomic back system

The ergonomic aluminium back shell is very stable and offers good freedom of movement. The slack formed ensures good lateral seating stability.

Specialist dealers can use the back shell as a base for building individual back systems.

Sturdy seating system

The seat plate is a sturdy seating system without slack and specialist dealers can use it as a potential base for building custom, anatomically shaped seat systems.

PRO ACTIV offers a range of seat cushions.

Option: Outdoor wheel attachment

The wheel attachment turns the wheelchair into an all-terrain vehicle for cobblestones, gravel and forest trails, as the caster wheels are raised off the ground and the larger 12" wheel of the wheel attachment makes it much easier to travel over uneven surfaces. The wheel attachment is quick and easy to attach without any tools using the quick release lever. The wheel of the outdoor wheel attachment with a steering fork swivels 360° and can be locked in a straight ahead position with one motion.

Device register item number: -
Special features: Particularly lightweight children’s wheelchair | Wide adjustment ranges | Growing feature
Number of configurable frame and chassis parameters: 5 frames and 4 chassis
Seat fold: -
Leg guidance at thigh level: Guidance via side parts and a custom seat system offered by the specialist dealer
Lower leg guidance: -
Front frame angle: -
Abduction: Seat position in maximum abduction possible, as there are no limiting front frame tubes
Lift function/seat height adjustment: -
Seat width: 18 - 34 cm (in 2-cm steps)
Seat depth: 20 - 35 cm (in 5-cm steps)
Back height: 20 - 35 cm (in 5-cm steps)
Lower leg length: 20 - 44 cm (in 1-cm steps)
Rear seat height: 31 - 41 cm (in 1-cm steps)
Front seat height: 34 - 44 cm (in 1-cm steps)
Tipping point: 5 - 9 cm (in 1-cm steps)
Adjustment of tipping point: By moving the seat and back system
Adjustment of seat height/seat angle: Seat angle configurable by positioning the seat and back system in the clothing guard
Total product weight: Starting at 6.7 kg
Max. standard load weight: Up to 50 kg
Max. load weight for Heavy Duty: -
Possible drive wheel sizes: 20'', 22'', 24''
Possible drive wheel camber: 11°
Wheelbase extension: -
One-hand operation: -
Integral parking brake: -
Wheelchair drive attachment: -
Approval for passenger transport in motor vehicles/Crash-tested: Not approved
Transport restraint system: -
Changes excepted. Details see order form. Individual dimensions on request.
