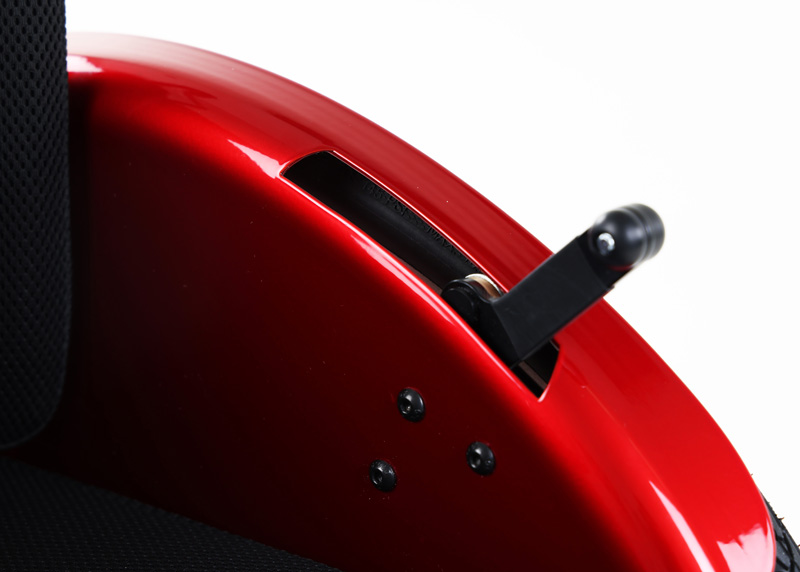

Bremshebel im Kleiderschutz, Bremse aktiv
Bremshebel im Kleiderschutz, Bremse aktiv

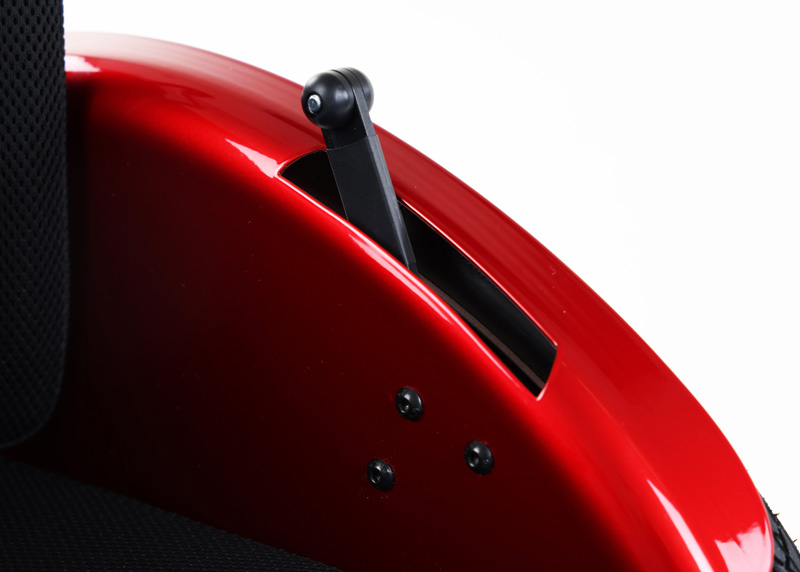

Bremshebel im Kleiderschutz, Bremse passiv
Bremshebel im Kleiderschutz, Bremse passiv
Bremsbolzen unten außerhalb des Griffbereichs, Bremse aktiv
Bremsbolzen unten außerhalb des Griffbereichs, Bremse aktiv
Bremsbolzen unten außerhalb des Griffbereichs, Bremse passiv
Bremsbolzen unten außerhalb des Griffbereichs, Bremse passiv
Bremse im Kleiderschutz integriert
Bremse im Kleiderschutz integriert
Bremshebel im Kleiderschutz, Bremse aktiv
Bremshebel im Kleiderschutz, Bremse aktiv
Bremshebel im Kleiderschutz, Bremse passiv
Bremshebel im Kleiderschutz, Bremse passiv
Bremse aktiv/passiv
Bremse aktiv/passiv
Fußauflage nach hinten hochklappbar, in Standardposition
Fußauflage nach hinten hochklappbar, in Standardposition
Fußauflage nach hinten hochklappbar, hochgeklappt
Fußauflage nach hinten hochklappbar, hochgeklappt
Fußauflage nach hinten hochklappbar, Höheneinstellung in mehreren Schritten
Fußauflage nach hinten hochklappbar, Höheneinstellung in mehreren Schritten
Fußauflage nach hinten hochklappbar, Höheneinstellung in mehreren Schritten
Fußauflage nach hinten hochklappbar, Höheneinstellung in mehreren Schritten
Fußauflage nach hinten hochklappbar, Höheneinstellung in mehreren Schritten
Fußauflage nach hinten hochklappbar, Höheneinstellung in mehreren Schritten
Fußauflage nach hinten hochklappbar, Höheneinstellung in mehreren Schritten
Fußauflage nach hinten hochklappbar, Höheneinstellung in mehreren Schritten
Kippstütze aktiv
Kippstütze aktiv
Kippstütze passiv
Kippstütze passiv
Kippstütze: Wechsel zwischen Aktiv- und Passivstellung
Kippstütze: Wechsel zwischen Aktiv- und Passivstellung
Abnahme der Kippstützen über Quickpin
Abnahme der Kippstützen über Quickpin
Video zur Kippstütze: Wechsel zwischen Aktiv- und Passivstellung
Kleiderschutz mit edlem und robustem Finochrom-Logo
Kleiderschutz mit edlem und robustem Finochrom-Logo
Verschiedene Lenkräder sind möglich wie z.B. die Frog Legs
Verschiedene Lenkräder sind möglich wie z.B. die Frog Legs
Lenkradlagerblock mit Metallemblem
Lenkradlagerblock mit Metallemblem
Packmaß
Packmaß
Zentral-Schiebegriff Aluminium, höhenverstellbar
Zentral-Schiebegriff Aluminium, höhenverstellbar
Zentral-Schiebegriff Aluminium, höhenverstellbar
Zentral-Schiebegriff Aluminium, höhenverstellbar
Zentral-Schiebegriff Aluminium, höhenverstellbar
Zentral-Schiebegriff Aluminium, höhenverstellbar
Zentralschiebegriff höhenverstellbar
Zentralschiebegriff höhenverstellbar
Zentral-Schiebegriff Aluminium, höhenverstellbar über Schnellspannhebel
Zentral-Schiebegriff Aluminium, höhenverstellbar über Schnellspannhebel
Sitzplatte & Kleiderschutz
Sitzplatte & Kleiderschutz
Sitzplatte & Kleiderschutz
Sitzplatte & Kleiderschutz
Sitzplatte & Kleiderschutz
Sitzplatte & Kleiderschutz
Sitz- & Rückensystem
Sitz- & Rückensystem
Sitz- & Rückensystem
Sitz- & Rückensystem
Litty 4you mit Zentralschiebegriff
Litty 4you mit Zentralschiebegriff
Litty 4you mit Zentralschiebegriff
Litty 4you mit Zentralschiebegriff
Litty 4you mit Zentralschiebegriff
Litty 4you mit Zentralschiebegriff
Litty 4you mit Zentralschiebegriff
Litty 4you mit Zentralschiebegriff

LITTY 4you

  • The LITTY 4you children's wheelchair is convincing with its individual frame geometry which is optimally suited for children. 5 frame and 5 chassis parameters can be tailored precisely to the user’s needs in 1-cm steps. For example, if required, a long wheelbase or a large clearance between the caster wheel bearing blocks can be implemented. The frame and the clothing guard are designed and manufactured individually for every LITTY 4you. You can choose wheel cambers of 6°, 8°, 11°, 13° or 15°.

    The LITTY 4you is immensely manoeuvrable and agile thanks to its light overall weight of 6.7 kg and the optimal easy running characteristics. These properties make it ideal for children whose arms are not very strong.

    In spite of the individual manufacturing, the seat height and angle, the back shell angle, the seat depth, foot position and front frame length can be adjusted.

    The B-Kids magazine had the following to say after testing the LITTY 4you with the DRS Rollikids in 2011: “The new LITTY by PRO ACTIV is a smart chair – especially for small and slim children. The open frame concept and integrated seating unit make it lighter than comparable ‘classic’ wheelchairs. It can be easily adjusted and positioned in spite of its tailored focus.” The LITTY 4you’s seat width starts at just 16 cm.

    Are you looking for a wheelchair with these exact properties, but would prefer greater adjustment ranges instead of the completely tailored focus? Then the LITTY 4all is the ideal wheelchair for you.  Details >

Individual frame for the best possible fit

10 frame and chassis parameters can be selected in 1-cm steps with wide ranges of dimensions to adapt the frame optimally to the user. The frame can be implemented with seat widths starting from just 16 cm. The frame and the clothing guard are designed and manufactured individually for every LITTY 4you.

The adjustment options and the growing feature offer flexibility

The seat position or the position of the seat plate can be continuously adjusted using eccentric discs in the clothing guard. The clothing guard is individually manufactured for every LITTY 4you with an optimal adjustment range for the seat plate. The LITTY 4you can grow with the child by replacing component groups (depending on the required seat width change, the axle tube, the seat plate, the back shell, the back cross bar and, depending on the situation, other component groups), making it a reliable companion for many years.

Maximum abduction possible

The frame structure, without restricting front frame tubes, allows for a maximum-abduction sitting position.

Optimal brakes for children and accompanying persons

The brake control of the knee lever brake in the clothing guard is located ergonomically within ideal reach for children. The brake pin is attached under the centre of the drive wheel far out of reach, preventing fingers from being pinched. A locking knee lever brake can also be installed for the accompanying person, which allows them to operate the brake via the push handles.

Various pushing devices for accompanying persons

The central push handles and push handle bars, which adjust easily and continuously in height, let the accompanying person push the wheelchair with one hand, keeping the other hand free for shopping or siblings. With the fold away handle area, the handle/bar angle is easy to adjust without tools. The handle/bar can also be folded away completely for transport. The push handle bar leaves plenty of room for hands, allowing the accompanying person to hold with one or two hands.

The ‘Safety push handles, back-positioned’ are also continuously height-adjustable and can be chosen with a lateral handle offset for a wider grip. This push handle version is operated with both hands.

Option: Foot support folds up to the rear

This ‘Backward folding foot support’ makes it easier to transfer in and out of the wheelchair for children who are still able to stand. This footrest can also adapt to the child’s requirements, by adjusting the height and angle.

Option: Therapy table

The therapy table is a useful work surface and can be removed in just a few steps without tools using the Quick-pin. Thanks to the continuous height, length and angle adjustment, the therapy table can be optimised for the child's needs.

Sturdy and ergonomic back system

The ergonomic aluminium back shell is very stable and offers good freedom of movement. The slack formed ensures good lateral seating stability.

Specialist dealers can use the back shell as a base for building individual back systems.

Sturdy seating system

The seat plate is a sturdy seating system without slack and specialist dealers can use it as a potential base for building custom, anatomically shaped seat systems.

PRO ACTIV offers a range of seat cushions.

Option: Outdoor wheel attachment

The wheel attachment turns the wheelchair into an all-terrain vehicle for cobblestones, gravel and forest trails, as the caster wheels are raised off the ground and the larger 12" wheel of the wheel attachment makes it much easier to travel over uneven surfaces. The wheel attachment is quick and easy to attach without any tools using the quick release lever. The wheel of the outdoor wheel attachment with a steering fork swivels 360° and can be locked in a straight ahead position with one motion.

Device register item number: -
Special features: Particularly lightweight children’s wheelchair | Custom frame | Growing feature | Adjustment options
Number of configurable frame and chassis parameters: 5 frames and 5 chassis
Seat fold: -
Leg guidance at thigh level: Guidance via side parts and a custom seat system offered by the specialist dealer
Lower leg guidance: -
Front frame angle: -
Abduction: Seat position in maximum abduction possible, as there are no limiting front frame tubes
Lift function/seat height adjustment: -
Seat width: 16 - 38 cm (in 1-cm steps)
Seat depth: 18 - 38 cm (in 1-cm steps)
Back height: 20 - 45 cm (in 1-cm steps)
Lower leg length: 20 - 44 cm (in 1-cm steps)
Rear seat height: 31 - 42 cm (in 1-cm steps)
Front seat height: 34 - 47 cm (in 1-cm steps)
Tipping point: 0 - 10 cm (in 1-cm steps)
Adjustment of tipping point: By moving the seat and back system
Adjustment of seat height/seat angle: Seat angle configurable by positioning the seat and back system in the clothing guard
Total product weight: Starting at 6.7 kg
Max. standard load weight: Up to 50 kg
Max. load weight for Heavy Duty: -
Possible drive wheel sizes: 20'', 22'', 24''
Possible drive wheel camber: 6°, 8°, 11°, 13°, 15°
Wheelbase extension: -
One-hand operation: -
Integral parking brake: -
Wheelchair drive attachment: -
Approval for passenger transport in motor vehicles/Crash-tested: Not approved
Transport restraint system: -
Changes excepted. Details see order form. Individual dimensions on request.
