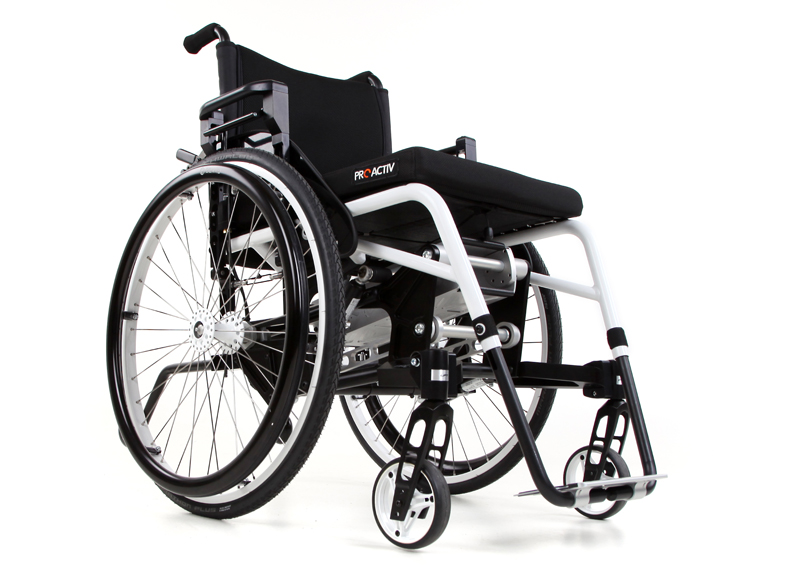

LIFT solid mechanical
LIFT solid mechanical
LIFT solid mechanical, seat height when lifted
LIFT solid mechanical, seat height when lifted
LIFT solid mechanical
LIFT solid mechanical
LIFT solid mechanical
LIFT solid mechanical
LIFT solid mechanical
LIFT solid mechanical
LIFT solid mechanical
LIFT solid mechanical
LIFT solid mechanical
LIFT solid mechanical
LIFT solid mechanical
LIFT solid mechanical
LIFT solid mechanical
LIFT solid mechanical
LIFT solid mechanical
LIFT solid mechanical
LIFT solid mechanical, seat height when lifted slightly
LIFT solid mechanical, seat height when lifted slightly
LIFT solid mechanical, seat height when lifted slightly
LIFT solid mechanical, seat height when lifted slightly
LIFT solid mechanical, seat height when lifted slightly
LIFT solid mechanical, seat height when lifted slightly
LIFT solid mechanical, seat height when lifted
LIFT solid mechanical, seat height when lifted
LIFT solid mechanical, seat height when lifted
LIFT solid mechanical, seat height when lifted
LIFT solid mechanical, seat height when lifted
LIFT solid mechanical, seat height when lifted
LIFT solid mechanical, seat height when lifted
LIFT solid mechanical, seat height when lifted
LIFT solid mechanical, seat height when lifted
LIFT solid mechanical, seat height when lifted
LIFT solid mechanical, seat height when lifted
LIFT solid mechanical, seat height when lifted
LIFT solid mechanical, seat height when lifted
LIFT solid mechanical, seat height when lifted
LIFT solid mechanical, seat height when lifted
LIFT solid mechanical, seat height when lifted
LIFT solid mechanical
LIFT solid mechanical
LIFT solid mechanical
LIFT solid mechanical
LIFT solid mechanical
LIFT solid mechanical
LIFT solid mechanical, seat height adjustment
LIFT solid mechanical, seat height adjustment
LIFT solid mechanical, seat height adjustment
LIFT solid mechanical, seat height adjustment

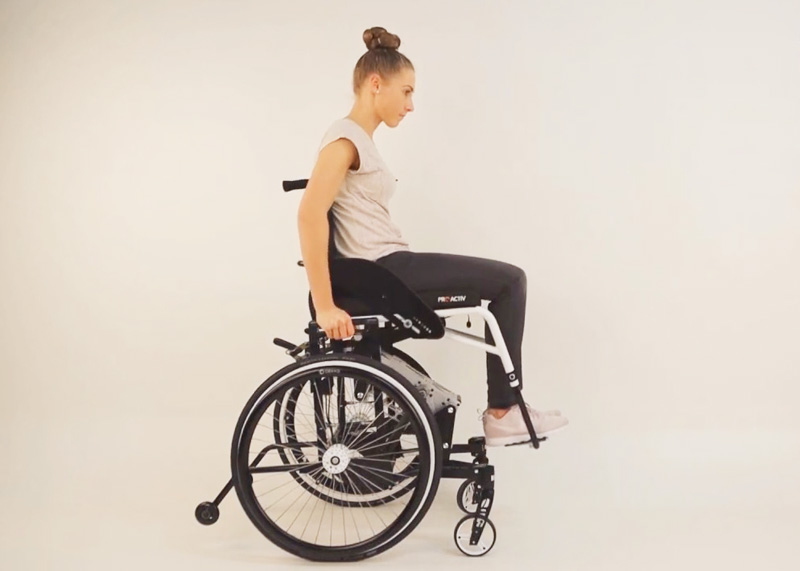

Seat surface height adjustment
Seat surface height adjustment
Seat height adjustment of the LIFT solid

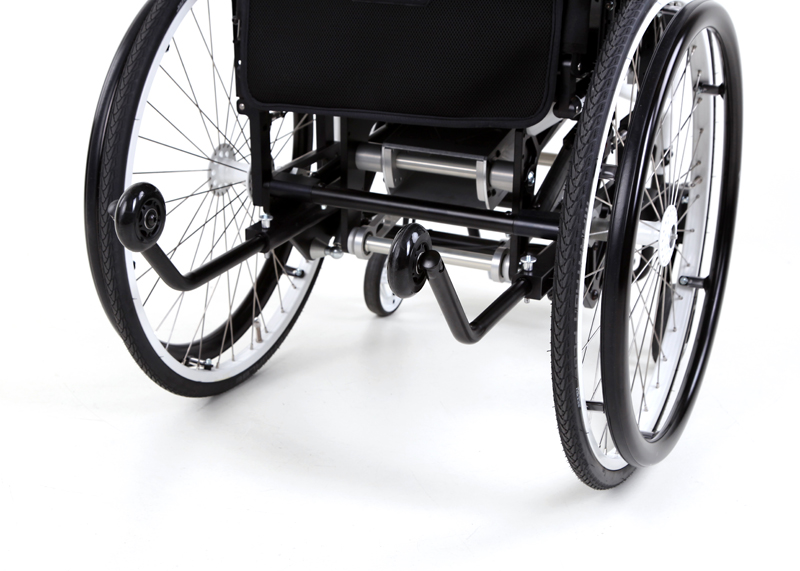

Anti-tipping supports (active position)
Anti-tipping supports (active position)
Anti-tipping supports (passive position)
Anti-tipping supports (passive position)
Anti-tipping supports active/passive position
Anti-tipping supports active/passive position

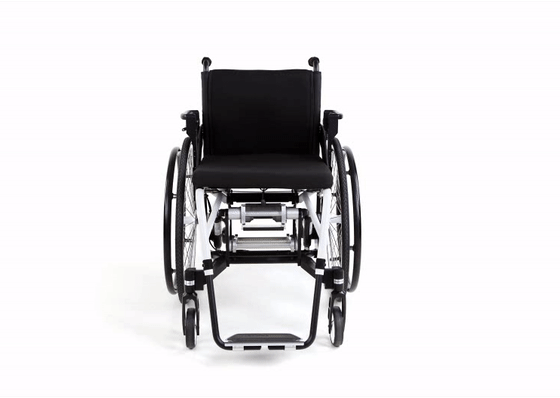

Pack size
Pack size
Frame pack size
Frame pack size
Pack size
Pack size
Frames
Frames
Frames
Frames
Adaptable back with back padding (belt system); can be folded and adjusted at seven different angles
Adaptable back with back padding (belt system); can be folded and adjusted at seven different angles
Adaptable back with back padding (belt system), folded down
Adaptable back with back padding (belt system), folded down
Folding down the backrest
Folding down the backrest
Adaptable back with back padding (belt system), back bar with lumbar curve
Adaptable back with back padding (belt system), back bar with lumbar curve
Adaptable back (belt system), back padding removed
Adaptable back (belt system), back padding removed
Caster fork removable via quick release lever, caster wheel with aluminium rim
Caster fork removable via quick release lever, caster wheel with aluminium rim
Body Contour seat cover, pliable, breathable and durable
Body Contour seat cover, pliable, breathable and durable
Gekko drive wheel and handrim
Gekko drive wheel and handrim
The drive wheel can be removed via the quick release lever
The drive wheel can be removed via the quick release lever
Wheels, anti-tipping supports and frame shape
Wheels, anti-tipping supports and frame shape
Seat height adjustment trigger mechanism
Seat height adjustment trigger mechanism
Lever for trigger mechanism activation
Lever for trigger mechanism activation
Trigger mechanism activated
Trigger mechanism activated
Knee lever brake open
Knee lever brake open
Knee lever brake closed
Knee lever brake closed

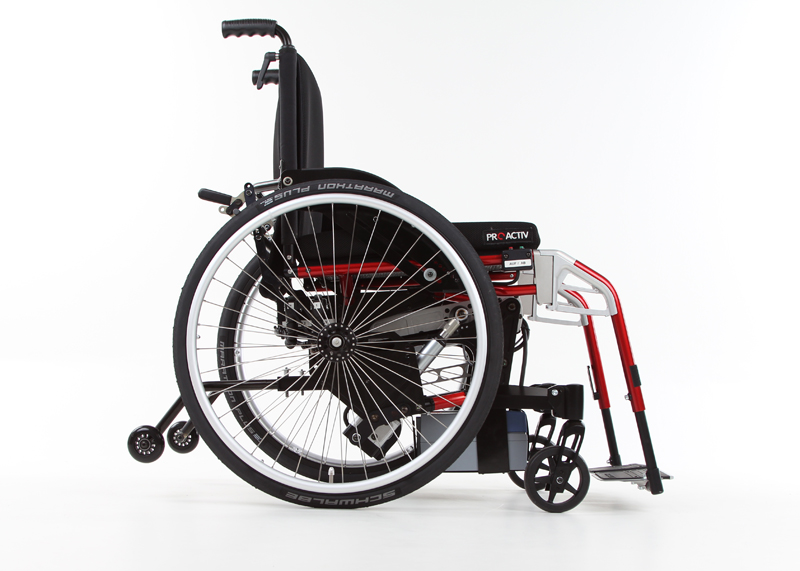

LIFT solid electric
LIFT solid electric
LIFT solid electric
LIFT solid electric
LIFT solid electric
LIFT solid electric
LIFT solid electric
LIFT solid electric
LIFT solid electric
LIFT solid electric
LIFT solid electric
LIFT solid electric
LIFT solid electric
LIFT solid electric
LIFT solid electric
LIFT solid electric
LIFT solid electric, seat height when lifted slightly
LIFT solid electric, seat height when lifted slightly
LIFT solid electric, seat height when lifted slightly
LIFT solid electric, seat height when lifted slightly
LIFT solid electric, seat height when lifted
LIFT solid electric, seat height when lifted
LIFT solid electric, seat height when lifted
LIFT solid electric, seat height when lifted
LIFT solid electric, seat height when lifted
LIFT solid electric, seat height when lifted
LIFT solid electric, seat height when lifted
LIFT solid electric, seat height when lifted
LIFT solid electric, seat height when lifted
LIFT solid electric, seat height when lifted
Two-piece footrest, with swivel away frame stem, removable
Two-piece footrest, with swivel away frame stem, removable
Two-piece footrest, with swivel away frame stem, removable
Two-piece footrest, with swivel away frame stem, removable
Two-piece footrest, with swivel away frame stem, one side swivelled out
Two-piece footrest, with swivel away frame stem, one side swivelled out
Two-piece footrest, with swivel away frame stem, both sides swivelled out
Two-piece footrest, with swivel away frame stem, both sides swivelled out
Two-piece footrest, with swivel away frame stem, removed
Two-piece footrest, with swivel away frame stem, removed
Two-piece footrest, with swivel away frame stem, removed
Two-piece footrest, with swivel away frame stem, removed

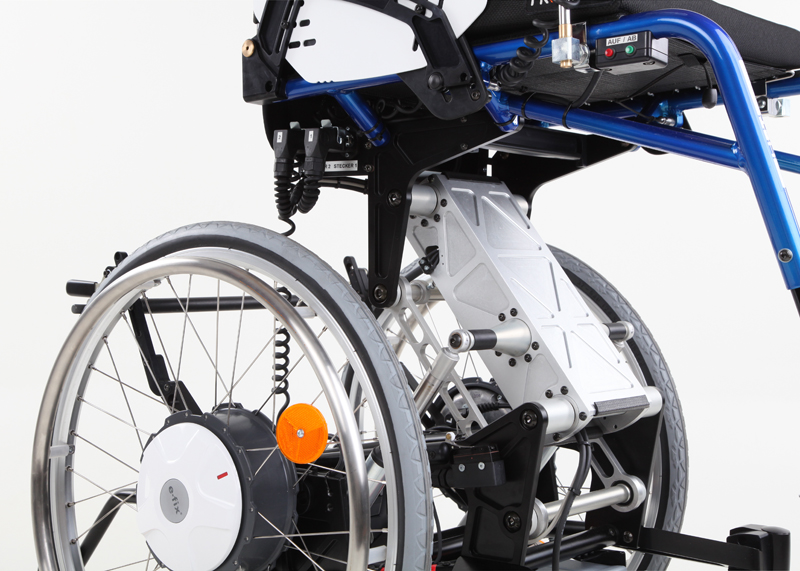

Lift mechanism
Lift mechanism
Lift mechanism
Lift mechanism
Pack size
Pack size
Pack size
Pack size
Body Contour seat cover, pliable, breathable and durable
Body Contour seat cover, pliable, breathable and durable
Presentation of the LIFT solid by behindert-barrierefrei e.V.

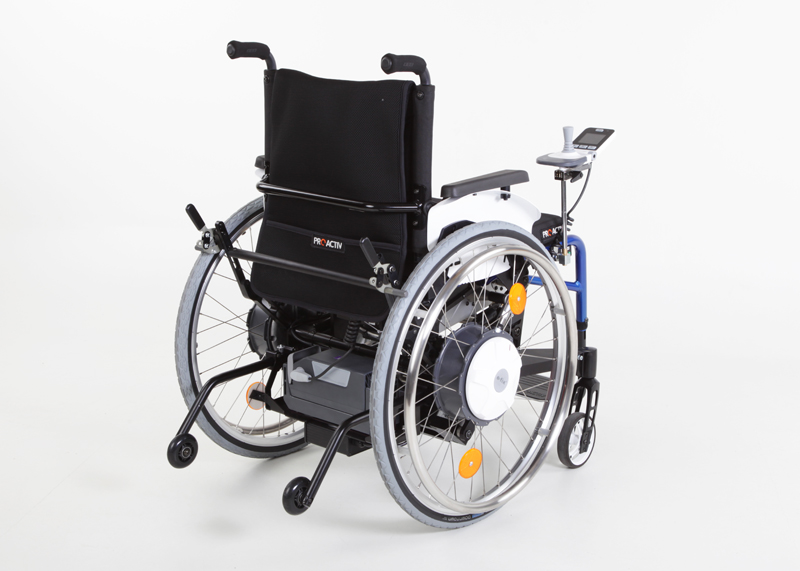

LIFT solid electric with e-fix drive as a lightweight electric wheelchair with seat height adjustment
LIFT solid electric with e-fix drive as a lightweight electric wheelchair with seat height adjustment
LIFT solid electric with e-fix drive as a lightweight electric wheelchair with seat height adjustment
LIFT solid electric with e-fix drive as a lightweight electric wheelchair with seat height adjustment
LIFT solid electric with e-fix drive as a lightweight electric wheelchair with seat height adjustment
LIFT solid electric with e-fix drive as a lightweight electric wheelchair with seat height adjustment
LIFT solid electric with e-fix drive as a lightweight electric wheelchair with seat height adjustment
LIFT solid electric with e-fix drive as a lightweight electric wheelchair with seat height adjustment
LIFT solid electric with e-fix drive as a lightweight electric wheelchair with seat height adjustment
LIFT solid electric with e-fix drive as a lightweight electric wheelchair with seat height adjustment
LIFT solid electric with e-fix drive as a lightweight electric wheelchair with seat height adjustment
LIFT solid electric with e-fix drive as a lightweight electric wheelchair with seat height adjustment
LIFT solid electric with e-fix drive as a lightweight electric wheelchair with seat height adjustment
LIFT solid electric with e-fix drive as a lightweight electric wheelchair with seat height adjustment
LIFT solid electric with e-fix drive as a lightweight electric wheelchair with seat height adjustment
LIFT solid electric with e-fix drive as a lightweight electric wheelchair with seat height adjustment
LIFT solid electric with e-fix drive as a lightweight electric wheelchair with seat height adjustment
LIFT solid electric with e-fix drive as a lightweight electric wheelchair with seat height adjustment
LIFT solid electric with e-fix drive as a lightweight electric wheelchair with seat height adjustment
LIFT solid electric with e-fix drive as a lightweight electric wheelchair with seat height adjustment

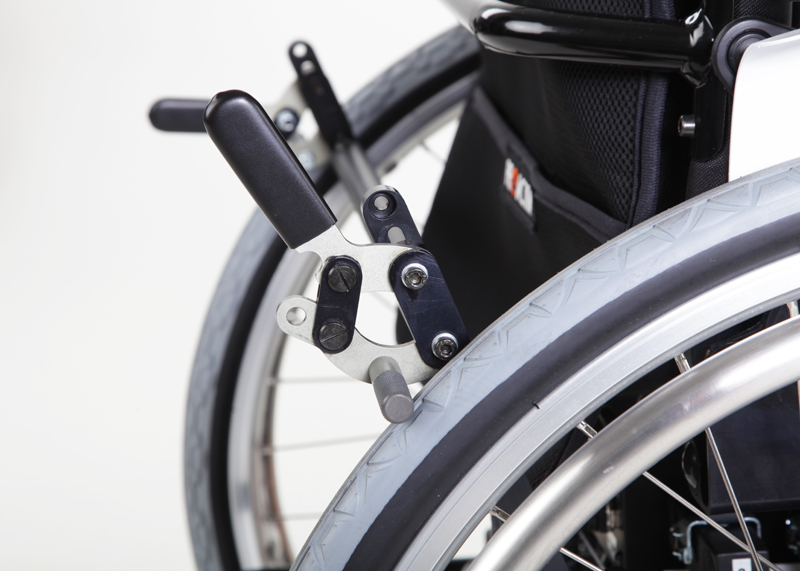

Knee lever brake
Knee lever brake
e-fix drive
e-fix drive
e-fix control
e-fix control
e-fix control
e-fix control
e-fix control
e-fix control
Bracket for e-fix control
Bracket for e-fix control
Bracket for e-fix control
Bracket for e-fix control
Lift mechanism
Lift mechanism
Lift mechanism
Lift mechanism
Seat height adjustment activated via buttons on the top frame tube
Seat height adjustment activated via buttons on the top frame tube
Backrest folded down
Backrest folded down
Battery for e-fix
Battery for e-fix
LIFT solid mechanical, seat height when lifted
LIFT solid mechanical, seat height when lifted
LIFT solid mechanical, seat height when lifted
LIFT solid mechanical, seat height when lifted
LIFT solid mechanical
LIFT solid mechanical
LIFT solid mechanical
LIFT solid mechanical
LIFT solid mechanical
LIFT solid mechanical
Frame pack size
Frame pack size
Pack size
Pack size
Pack size
Pack size
Backrest folded down
Backrest folded down
Anti-tipping supports (active position)
Anti-tipping supports (active position)
Footrest folds up to the rear (passive position, folded up)
Footrest folds up to the rear (passive position, folded up)
Footrest folds up to the rear (active position)
Footrest folds up to the rear (active position)
Footrest folds up to the rear (active position)
Footrest folds up to the rear (active position)
Footrest folds up to the rear (passive position, folded up)
Footrest folds up to the rear (passive position, folded up)
Adaptable back (belt system), back padding removed
Adaptable back (belt system), back padding removed
Seat height adjustment trigger mechanism
Seat height adjustment trigger mechanism
Lift mechanism
Lift mechanism
Body Contour seat cover, pliable, breathable and durable
Body Contour seat cover, pliable, breathable and durable
Footrest folds up to the rear with spring locking mechanism (example: SPEEDY 4all Ergo)
Safety push handles with continuous height adjustment

LIFT solid - Mechanical and electric

  • The LIFT solid is a real workhorse. The continuously adjustable seat height makes it highly flexible in use in a wide range of professions, and lets you use conventional furniture and kitchen fittings. As an employee and wheelchair user, you can be assigned to various workstations, machines and devices. The seat height adjustment raises the seat smoothly by up to 30 cm. In this position, the wheelchair user is eye to eye with a person standing about 1.75 m tall.

    The LIFT solid is sturdy and proves its worth in tougher environments, too. The Heavy Duty equipment enables heavier loads, making it possible to carry up to 140 kg.

    The tipping point can be adjusted retroactively to respond to any changing user needs. The front seat height or seat angle can be changed by using different caster fork and caster wheels.

    LIFT solid mechanical: The seat height can be adjusted continuously with little effort thanks to the gas pressure springs.

    LIFT solid electric: For persons with impaired arm or finger function, the same LIFT solid design is also available with an electric lift feature.

LIFT solid with mechanical seat height adjustment

The continuous seat height adjustment is achieved with gas pressure springs. Press the movement lever upwards to activate the seat height adjustment. The seat can then be raised with little effort by up to 30 cm.

An electric seat height adjustment can also be retrofitted at a later point in time.

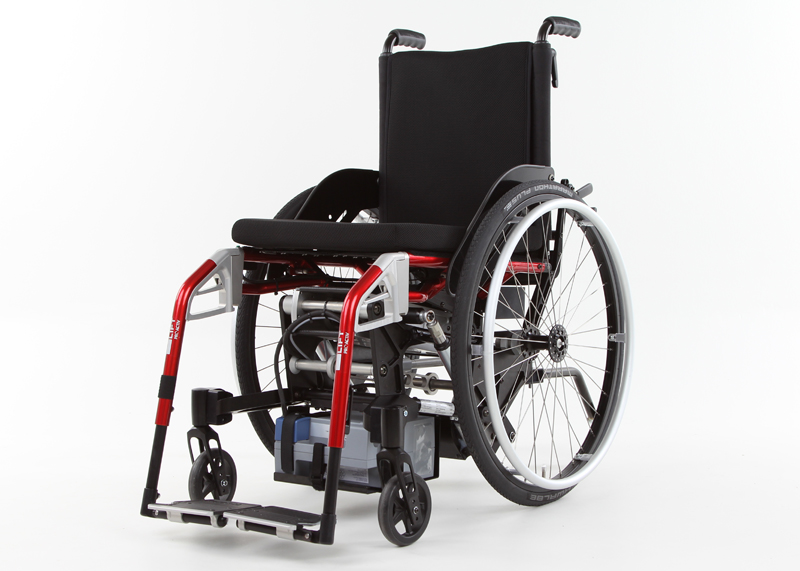

LIFT solid with electric seat height adjustment

For persons with impaired arm or finger function, the LIFT solid is also available with an electric lift feature. The user reaches the desired work height and new action areas at the push of a button.

The mechanical LIFT solid can also be retrofitted with an electric seat height adjustment. If the disability advances, it can be altered repeatedly at low costs.



Sturdy frame for maximum mobility and compatibility

The standard frame version is rated for loads of up to 120 kg. With the Heavy Duty equipment, the LIFT solid is also ideal for heavier loads of up to 140 kg. Overall, the LIFT solid is suitable for a tougher environment with its sturdy and low-maintenance construction.

Compatibility with wheelchair drives like e-fix, e-motion or Twion, for example, can also be provided upon request.

Simple transport

Easy to transport in a car boot by simply taking the wheelchair apart into its modules and folding down the backrest; no tools are necessary.

Use as a standing-up aid

People whose conditions leave them some movement in their legs (such as multiple sclerosis, muscular dystrophy, partial paraplegia or partial paralysis with some movement in the legs, spina bifida, prosthesis wearers or neurological diseases leaving some movement in the legs), can also use the LIFT solid to help themselves stand up.

For this purpose, the user must first rise up a few centimetres until the supporting force increases perceptibly. The user then slides forward on the seat and is lifted up until their legs are almost straight. The user then supports themselves into a standing position.

For this use, it makes sense to select the ‘Divided footrest with swivel frame stem’ or another footrest that can be folded or swivelled away.

Option: Divided footrest with swivel and removable frame stem

The ‘Divided footrest’ can also be swivelled out and removed, so that the frame ends at the front end of the fabric and leaves a lot of space for transfer.

Use as a lightweight electric wheelchair

When combined with the e-fix drive made by Alber GmbH, the LIFT solid electric is another lightweight alternative to an electric wheelchair, including a seat height adjustment at the push of a button. The e-fix drive can be programmed individually and therefore adapts perfectly to the personal requirements. The wheelchair is steered by a joystick. This lets users travel even long distances and steep climbs effortlessly.

Various back systems

The backrest can be folded and adjusted at seven different angles (without tools), offering flexible seat positions. This backrest is available as a lightweight adaptable back with back padding (belt system for optimal adjustment of slack and padded lumbar support) or as a sturdy back shell (very sturdy with fixed slack and adjustable lumbar support).

The ERGO Back backrest bar is also available as an option in addition to the adjustable back and the back shell. This backrest bar relieves the strain on your back by allowing you to lean back, and adds an attractive visual touch. The recessed gripping areas mean that you do not need any push handles, and also prevent unwelcome pushing by others.

Range of seat systems

A range of seat systems are available for the LIFT solid. The ‘open belt system’ seat cover lets users adjust the pressure distribution using belts. The ‘body contour’ seat cover provides a cushioning effect, absorbing impacts and helping prevent pressure ulcers. It is highly breathable and sturdy (the material is double-stitched to counteract the ‘hammock’ effect). You can also select seat plates as a sturdy seat system with no slack.

Wide range of optional extras and accessories

Each LIFT solid is a customised model, with frame dimensions and equipment that are always tailored to the wheelchair user’s needs. You can choose from a wide range of equipment for the LIFT solid, including footrests, brakes, push handles, back and seat systems, clothing guards, armrests, as well as drive and caster wheels.

Device register item number: 18.99.06.2001
Special features: Mechanical or electric seat height adjustment | Adjustment options | Sturdy, suitable for rougher terrains
Number of configurable frame and chassis parameters: 4 frames and 2 chassis
Seat fold: No seat fold, upper frame tubes are straight
Leg guidance at thigh level: No frame retraction possible, guidance via straight frame tubes only
Lower leg guidance: G- or V-shape frame stems available
Front frame angle: 105°
Abduction: -
Lift function/seat height adjustment: Continuous mechanical or electric seat height adjustment, range 30 cm
Seat width: 30 - 46 cm (in 1-cm steps)
Seat depth: 25 - 48 cm (in 1-cm steps)
Back height: 20 - 48 cm (in 1-cm steps)
Lower leg length: 20 - 50 cm (in 1-cm steps)
Rear seat height: 42 cm, 45 cm
Front seat height: 44 - 54 cm (in 2-cm steps, depending on the size of the caster wheels)
Tipping point: 3 cm - 12 cm (depending on frame size)
Adjustment of tipping point: Continuous
Adjustment of seat height/seat angle: Seat angle adjustable via caster forks and caster wheels
Total product weight: Mechanical starting at 19 kg & electric starting at 35 kg
Max. standard load weight: Up to 120 kg
Max. load weight for Heavy Duty: Up to 140 kg
Possible drive wheel sizes: 24″, 25″, 26″
Possible drive wheel camber:
Wheelbase extension: Via extended wheel plate
One-hand operation: -
Integral parking brake: -
Wheelchair drive attachment: Optional, e-fix, Twion, e-motion, other drives on request
Approval for passenger transport in motor vehicles/Crash-tested: Not approved
Transport restraint system: -
Changes excepted. Details see order form. Individual dimensions on request.
