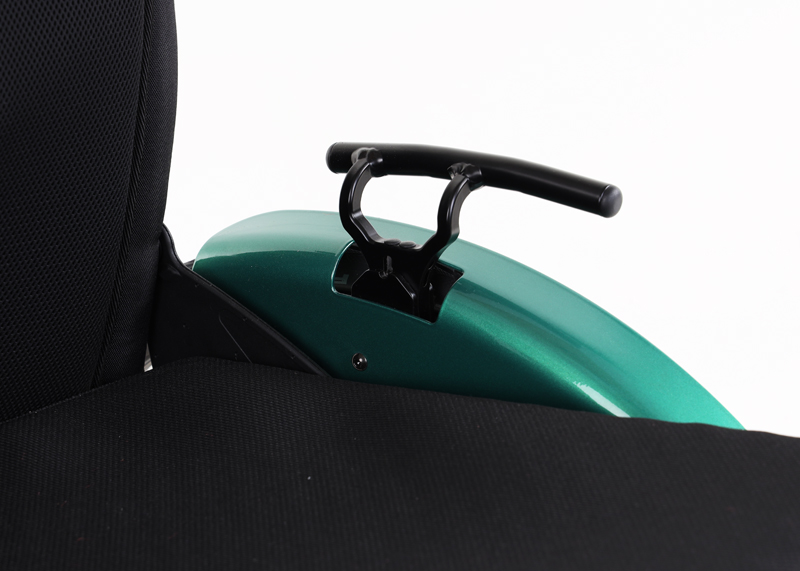

Release handle for the lifting function
Release handle for the lifting function
Drive wheel with quick-release axle
Drive wheel with quick-release axle
LIFT activ mechanical
LIFT activ mechanical
LIFT activ mechanical, lifted upwards
LIFT activ mechanical, lifted upwards
LIFT activ mechanical
LIFT activ mechanical
LIFT activ mechanical
LIFT activ mechanical
LIFT activ mechanical
LIFT activ mechanical
LIFT activ mechanical
LIFT activ mechanical
LIFT activ mechanical
LIFT activ mechanical
LIFT activ mechanical
LIFT activ mechanical
LIFT activ mechanical, lifted upwards
LIFT activ mechanical, lifted upwards
LIFT activ mechanical with the footrest with removable frame stem
LIFT activ mechanical with the footrest with removable frame stem
Footrest with removable frame stem, folded outwards
Footrest with removable frame stem, folded outwards
Footrest with removable frame stem, removed
Footrest with removable frame stem, removed
Footrest with removable frame stem
Footrest with removable frame stem
Footrest with removable frame stem, operation
Footrest with removable frame stem, operation
Lifting mechanism
Lifting mechanism
Integral brake
Integral brake
GIF: Integral brake
GIF: Integral brake
Tilt support in active position
Tilt support in active position
Tilt support in passive position
Tilt support in passive position
GIF: Tilt support active/passive
GIF: Tilt support active/passive
Clothing guard and release handle for the lifting mechanism
Clothing guard and release handle for the lifting mechanism
Clothing guard and release handle for the lifting mechanism
Clothing guard and release handle for the lifting mechanism
Steering wheel with aluminium rim
Steering wheel with aluminium rim
Packing size
Packing size
Push handle
Push handle
Seat unit lifted upwards
Seat unit lifted upwards
Clothing guard and release handle for the lifting mechanism
Clothing guard and release handle for the lifting mechanism
Clothing guard and release handle for the lifting mechanism
Clothing guard and release handle for the lifting mechanism

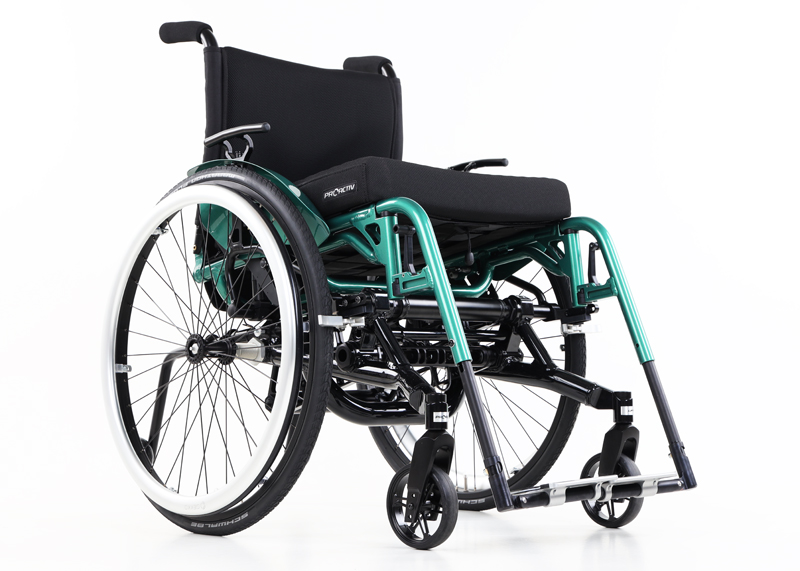

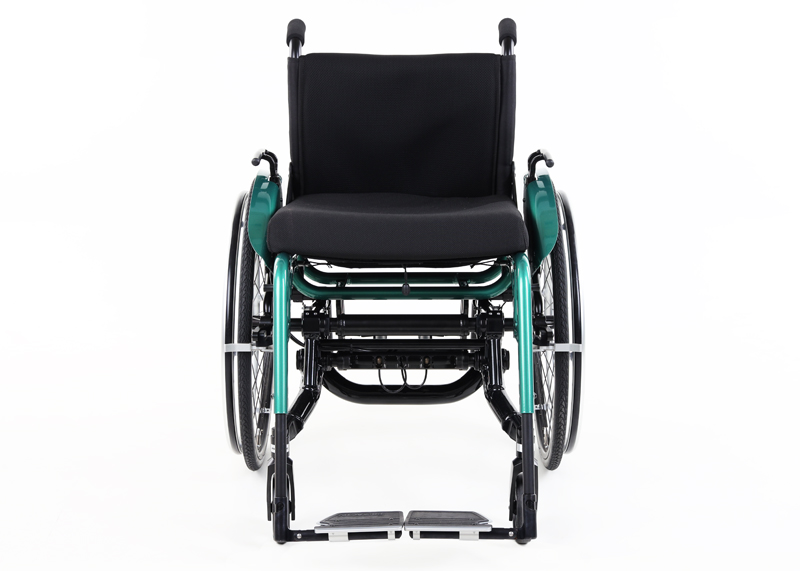

LIFT activ – mechanical

  • The LIFT activ is equipped with a manual seat height adjustment option, which is easily adjusted using a handle. With only a little muscle power, the seat is lifted upwards by up to 30 cm. In this position, the wheelchair user is eye to eye with a person standing about 1.75 m tall.

    This adjustable seat height makes it highly flexible in use in a wide range of professions, and lets you use conventional furniture and kitchen facilities. As an employee and wheelchair user, you can be assigned flexibly to various workstations, machines and attachments. With the seat height adjustment, you can easily operate printers and copiers. Wall units and top shelves in the office or at home are accessible. Conversion measures are often no longer necessary.

    The tipping point can be adjusted retroactively to respond to any changing user needs.

    >> The order form will follow soon. <<

LIFT activ gets you to the right level – in your job, everyday life and leisure

Thanks to its low weight (in comparison to the LIFT solid), the LIFT activ is ideal for transport and for using the wheelchair at work, in everyday life and leisure activities. Reaching the files on the top shelf at the office in the morning, putting the dishes in the wall cupboard above the worktop in the kitchen at home at lunchtime, and having a conversation with family and friends at eye level at the bar in the evening – that’s no problem with the LIFT activ.

The LIFT activ is also the ideal companion for professionals who frequently change their place of work during the course of the day; for example, an architect who travels between the office and various construction sites.

LIFT activ with manual seat height adjustment

The LIFT activ is equipped with a manual seat height adjustment option, which is easily adjusted using a handle. The continuous seat height adjustment is achieved with gas pressure springs. With only a little muscle power, the seat is lifted upwards by up to 30cm.
Lifting up and down video >>

Light and active despite lifting mechanism

The frame and lifting mechanism have been developed so that the LIFT activ weighs from 14.5 kg and has an attractive and dynamic design.

Simple transport

Easy to transport in a car boot by simply taking the wheelchair apart into its modules; no tools are necessary.

Use as a standing-up aid

People whose conditions leave them some movement in their legs (such as multiple sclerosis, muscular dystrophy, partial paraplegia or partial paralysis with some movement in the legs, spina bifida, prosthesis wearers or neurological diseases leaving some movement in the legs), can also use the LIFT activ to help themselves stand up.

For this use, it makes sense to select the ‘Divided footrest with swivel frame stem’ or another footrest that can be folded or swivelled away.

Option: Removable frame stem, swivelling with split footrest

The frame stem can also be swivelled out and removed, so that the frame ends at the front end of the fabric and leaves a lot of space for transfer.
Video on the operation of the frame stem removable >>

Various back systems

The backrest can be folded and adjusted at seven different angles (without tools), offering flexible seat positions. As a further equipment option, the Ergofix backrest offers a fixed lumbar support. The backrest can be folded down at the lordosis joint and offers flexibility for lumbar support.

The ERGO Back backrest bar is also available as an option in addition to the adjustable back and the back shell. This backrest bar relieves the strain on your back by allowing you to lean back, and adds an attractive visual touch. The recessed gripping areas mean that you do not need any push handles, and also prevent unwelcome pushing by others.

Video of the back system with removable lordosis joint >>

Range of seat systems

A range of seat systems are available for the LIFT activ. The ‘open belt system’ seat cover lets users adjust the pressure distribution using belts. The ‘body contour’ seat cover provides a cushioning effect, absorbing impacts and helping prevent pressure ulcers. It is highly breathable and sturdy (the material is double-stitched to counteract the ‘hammock’ effect).

Wide range of optional extras and accessories

Each LIFT activ is a customised model, with frame dimensions and equipment that are always tailored to the wheelchair user’s needs. You can choose from a wide range of equipment for the LIFT activ, including footrests, brakes, push handles, back and seat systems, as well as drive and caster wheels.

Special features: Manual seat height adjustment | Adjustment options
Number of configurable frame and chassis parameters: 7
Seat fold: No seat fold, upper frame tubes are straight
Leg guidance at thigh level: Guidance by straight frame tubes
Lower leg guidance: G- or V-shape frame stems available
Front frame angle: 105°, 100°
Abduction: -
Lift function / seat height adjustment: Manual seat height adjustment, over 30 cm infinitely adjustable
Seat width: 35 - 46 cm (in 1 cm steps)
Seat depth: 35 - 48 cm (in 1 cm steps)
Back height: 20 - 48 cm (in 1 cm steps)
Lower leg length: 30 - 50 cm (in 1 cm steps)
Rear seat height: 41 - 43 cm (in 1-cm steps)
Front seat height: 45 - 51 cm (in 1-cm steps)
Tipping point: 6 - 10 cm (in 1 cm steps)
Adjustment of tipping point: In 1 cm steps
Adjustment of seat height/seat angle: -
Total product weight: Starting at 14,5 kg
Max. standard load weight: Up to 100 kg
Max. load weight for Heavy Duty: -
Possible drive wheel sizes: 24'', 25'', 26''
Possible drive wheel camber: 1°, 4°, 2,5°
Wheelbase extension: -
One-hand drive: -
Integral parking brake: Optional
Wheelchair drive attachment: Optional, e-motion
Approval for passenger transport in motor vehicles / crash-tested: currently not approved
Transport restraint system: currently unavailable
Changes excepted. Details see order form. Individual dimensions on request.
