Offroad Sport-ST
-
The Offroad Sport-ST was designed as a lightweight hardtail. The high-quality aluminium frame with its balanced geometry ensures an optimal ratio of agility and track alignment. The internal traction underlines the linear look of the bike. Thanks to the integrated mounting, attaching or retrofitting mudguards is possible at a later date.
Powerful propulsion is provided by Shimano's mid-mounted motors, which guarantee fun on every terrain.
With the help of our configuration options, the Offroad Sport-ST can be equipped with high-quality, selected components and adapted to your personal needs. To precisely meet your specifications, you can choose the frame size and colour as well as all components via an order sheet. We then produce your customised pedelec for you in a matter of a few weeks at the Dotternhausen site (Germany).
Powerful drive system Shimano EP8
With a torque of 85 Nm, this drive system offers extremely good power support and also makes steep climbs seem easy. The sensitive response gives the driver outstanding handling control and a natural-feeling ride. Even with all its power, the EP8 system is virtually silent and with a motor weight of just 2.6 kg, it’s a true lightweight. The clutch mechanism allows for a more immediate driving experience and smoother shutdown if the user presses the pedals at speeds above 25 km/h.

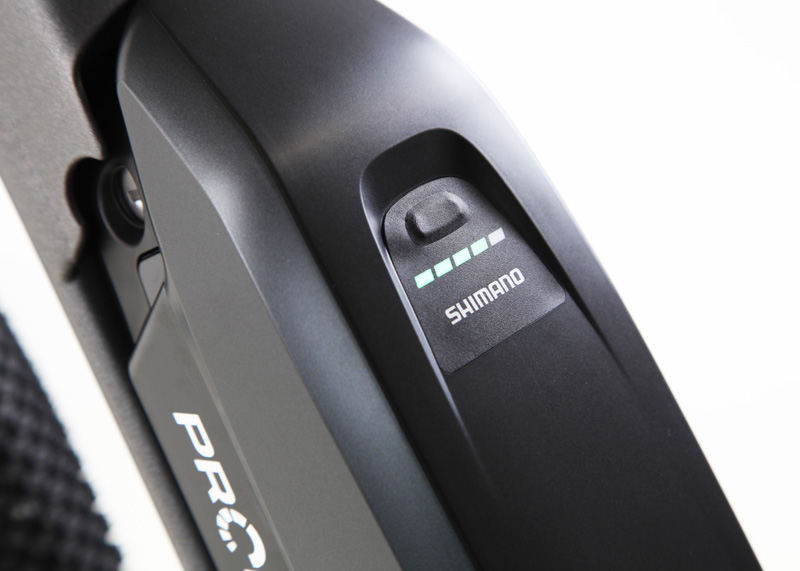

The clear and high-contrast display offers extensive bike-computer functions and intuitive usability. The user can conveniently and safely select his or her desired support via remote control switches. The extremely durable, waterproof rechargeable battery has a long life and is quickly recharged.
Selection of front forks, wheel & tyres

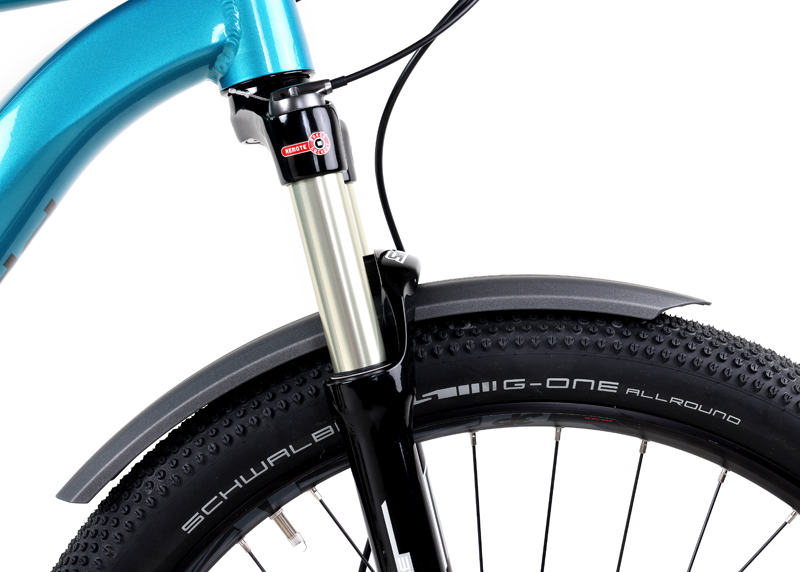

Choose between 29” and 27.5” wheel size. Both versions can be selected with a rigid or suspension fork. For the tyres, you can choose between various high-quality Schwalbe tires, or even tyres with a width of up to 70 mm. Due to the option of driving with low air pressure, they compensate for many bumps and bounces and enable a wide range of applications.
Individual colour choice and design
There is a range of frame colours to choose from. It is also possible to integrate a company design or name lettering. In addition, a colour from the entire colour palette can be selected for the mudguards.
Suspension for more comfort
A suspension fork with a 100 mm spring deflection can be fitted as an optional front suspension. Saddle supports with suspension are also possible.
Safety thanks to the specially manufactured aluminium motor protection
We make the aluminium motor protection in house. It protects the engine even more effectively from damage from below caused by impact or stone impacts. In addition, the motor protection can be colour-coordinated as a design element.
| Pedal assistance: | Up to 25 km/h |
| Motor: | Shimano EP8 mid-mounted motor | 250 W | 85 Nm | Weight 2.6 kg |
| Rechargeable battery: | Shimano STEPS BT-E8010 | 36 V | 14 Ah | 504 Wh | Weight 2.6 kg Shimano STEPS BT-E8016 | 36 V | 17.5 Ah | 630 Wh | Weight 3.5 kg |
| Running wheel sizes: | 27.5'' | 29'' |
| Frame height: | 44 cm | 48 cm | 52 cm | 56 cm |
| Gear shift: | Shimano dérailleur gear systems |
| Brakes: | Hydraulic Shimano disc brakes |
| Suspension: | Suspension fork (air) optional Saddle supports with suspension |
| Ready-to-drive weight: | Starting at 20.0 kg |
